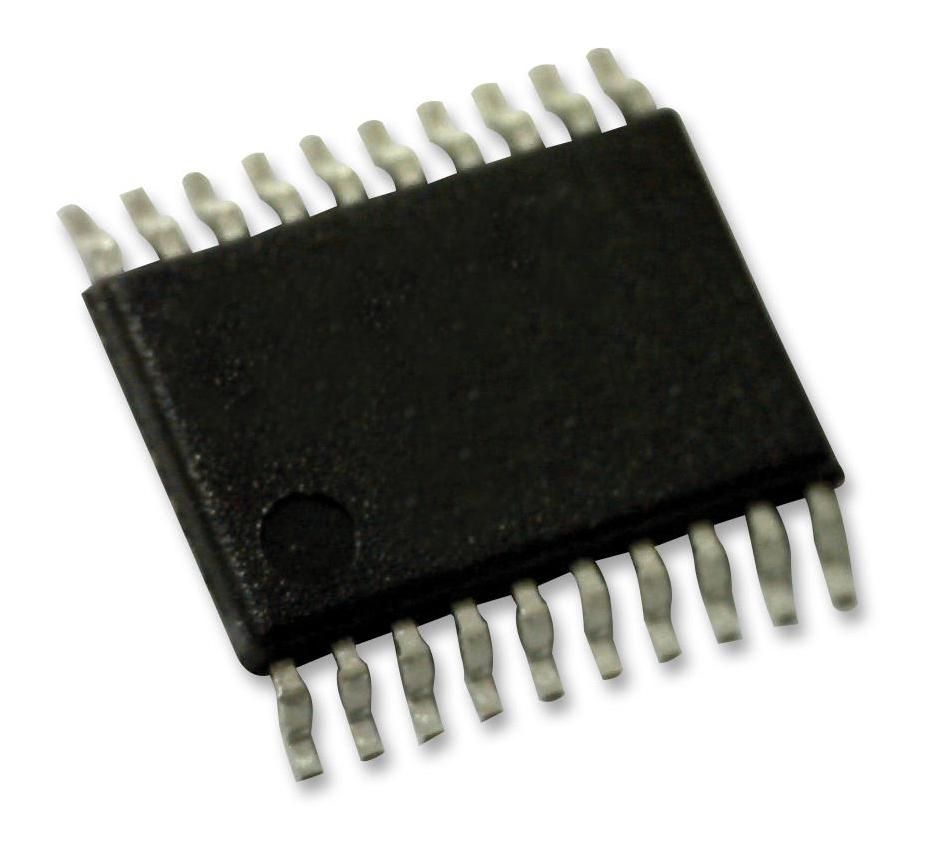

ONSEMI 74VHC245MTCX Octal Transceiver with 3-STATE Outputs
The ONSEMI 74VHC245MTCX is an advanced high-speed CMOS octal bus transceiver with 3-STATE outputs. It's fabricated with silicon gate CMOS technology, offering high-speed operation and low power dissipation. This transceiver is designed for bidirectional asynchronous communication between data busses and includes an enable input for isolating the busses. It's commonly used in data transmission systems, industrial control, and communication interfaces where high speed and low power consumption are critical.
ONSEMI 74VHC245MTCX Octal Transceiver with 3-STATE Outputs Specifications:
- Supply Voltage (VCC): 0.5V to 7.0V
- DC Input Voltage (VIN): 0.5V to 7.0V
- DC Output Voltage (VOUT): 0.5V to VCC - 0.5V
- Input Diode Current (IIK): r20 mA
- Output Diode Current (IOK): r20 mA
- DC Output Current (IOUT): r25 mA
- DC VCC/GND Current (ICC): r75 mA
- Storage Temperature (TSTG): r65qC to 150qC
- Lead Temperature (TL): 260qC
- Input Rise and Fall Time (tr, tf): 0a100 ns/V (VCC 3.3V), 0a20 ns/V (VCC 5.0V)
- Propagation Delay (tPLH): 5.8 ns (typ)
- Output Enable Time (tPZH): 5.8 ns (typ)
- Input Capacitance (CIN): 4-10 pF
- Output Capacitance (CI/O): 8 pF
- Power Dissipation (CPD): 21 pF
