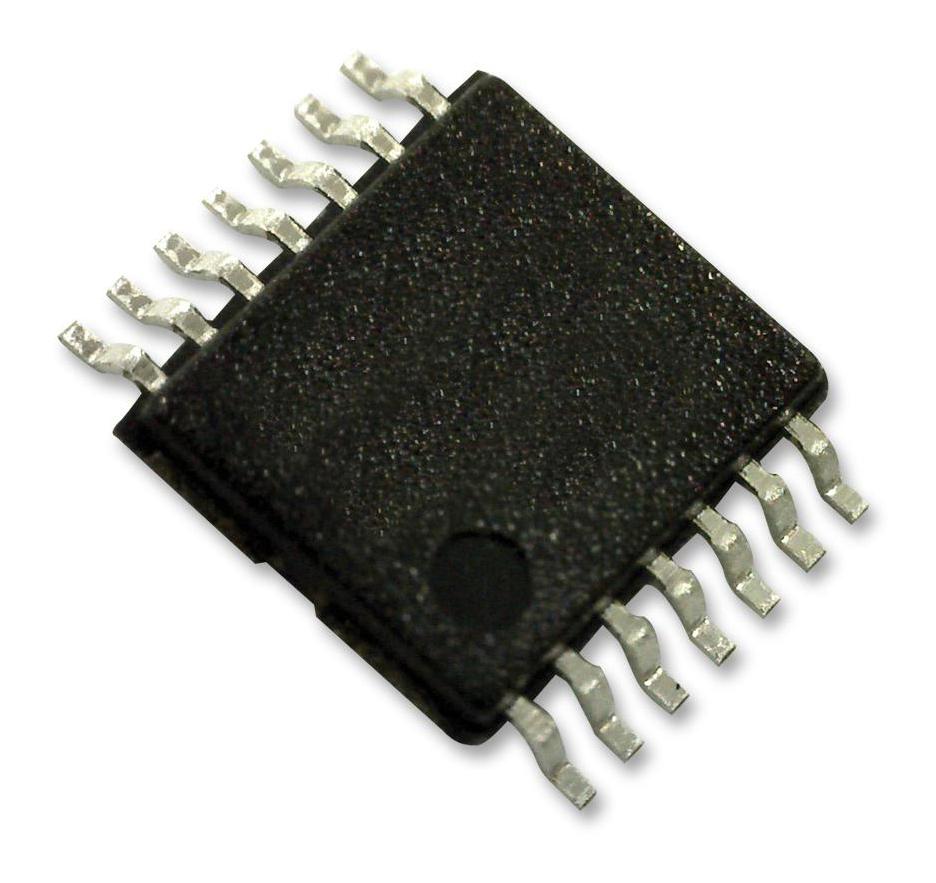

ONSEMI 74VHC86MTCX Quad 2-Input Exclusive-OR Gate
The ONSEMI 74VHC86MTCX is an advanced high-speed CMOS Quad Exclusive OR Gate fabricated with silicon gate CMOS technology. It combines high-speed operation with low power dissipation, similar to bipolar Schottky TTL. An input protection circuit allows for operation with mismatched supply and input voltages, making it suitable for interfacing 5V to 3V systems and battery-backed applications. This gate provides reliable logic functionality across a wide range of industrial applications.
ONSEMI 74VHC86MTCX Quad 2-Input Exclusive-OR Gate Specifications:
- High Speed: tPD = 4.8ns (typ.) at VCC = 5V
- Low Power Dissipation: ICC = 2µA (max.) @ TA = 25°C
- High Noise Immunity: VNIH = VNIL = 28% VCC (min.)
- Input Voltage: –0.5V to +7.0V
- Supply Voltage: –0.5V to +7.0V
- DC Output Voltage: –0.5V to VCC + 0.5V
- Input Leakage Current: ±0.1µA to ±1.0µA @ 25°C
- Quiescent Supply Current: 2.0µA to 20.0µA @ 25°C
- Operating Temperature: –40°C to +85°C
- Propagation Delay: 7.0ns to 13.0ns @ 3.3V, 4.8ns to 8.0ns @ 5.0V
- Input Capacitance: 4pF to 10pF
- Power Dissipation Capacitance: 18pF
Buy the 74VHC86MTCX ONSEMI Quad 2-Input Exclusive-OR Gate | myMectronic
Purchase the ONSEMI 74VHC86MTCX securely and reliably for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHC86MTCX?
You can click on the BUY or RFQ button to purchase 74VHC86MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC86MTCX?
You can download the 74VHC86MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC86MTCX?
ONSEMI
