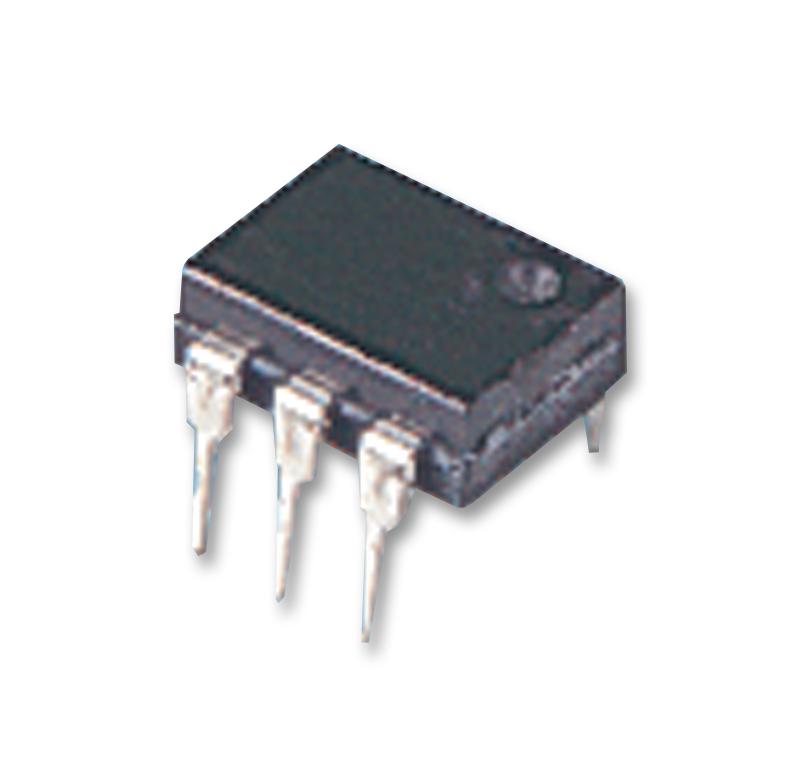

ONSEMI H11L3SR2VM 6-Pin Optocoupler
The H11L3SR2VM is a compact, high-speed optocoupler featuring a Schmitt trigger output for enhanced noise immunity and pulse shaping. Designed for logic-to-logic isolation, this 6-pin device integrates a gallium-arsenide infrared LED with an optically coupled detector circuit, ensuring reliable performance across broad voltage and temperature ranges. Ideal for AC to TTL conversion, power supply control, and signal isolation in industrial automation, instrumentation, and computing systems. Its open-collector output supports programmable current levels, sinking up to 16mA at 0.4V, with a typical data rate of 1MHz, making it suitable for diverse digital applications.
ONSEMI H11L3SR2VM 6-Pin Optocoupler Specifications:
- Number of pins: 6
- Application: Logic-to-Logic Isolation, Programmable Current Sensor, AC to TTL Conversion
- Output current: Up to 16mA at 0.4V
- Data rate: 1MHz (NRZ)
- Isolation voltage: 4170 VAC for 1 minute
- Input-to-Output Insulation Voltage: 850 Vpeak
- Creepage and clearance: 27 mm
- Case temperature: -40°C to +85°C
- Maximum storage temperature: -40°C to +125°C
- Turn-on threshold current: 1.6 mA (H11L1M), 10.0 mA (H11L2M), 5.0 mA (H11L3M)
- Maximum forward voltage: 1.2V at 10mA
- Junction temperature: -40°C to +125°C
- Power dissipation: 250mW at 25°C
- Input current: 350mA (continuous), Forward voltage: 1.2V
- Insulation resistance: >10^9Ω at 500VDC
