ONSEMI ECH8654TLH Power MOSFET
The ECH8654 is a high-performance P-Channel Power MOSFET designed for efficient power switching applications. It features low ON-resistance, a maximum drain-to-source voltage of 20V, and a maximum drain current of -5A. Suitable for use in compact designs, it includes a built-in protection diode and is halogen-free, meeting environmentally friendly standards. The device offers excellent switching characteristics with a low gate charge and fast turn-on/turn-off times. Its robust specifications ensure reliability in power management, motor control, and load switching circuits, making it ideal for advanced electronic systems requiring high efficiency and durability.
ONSEMI ECH8654TLH Power MOSFET Specifications:
- Drain-to-Source Voltage: 20V
- Drain Current (OC): -5A
- Drain Current (Pulse): 40A
- Allowable Power Dissipation: 13W (mounted on ceramic substrate)
- Total Power Dissipation: 15W (mounted on ceramic substrate)
- Channel Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Gate-to-Source Voltage: FC (max)
- Static Drain-to-Source On-State Resistance: 58 mo | at -1.5A, VGs=-4V
- Input Capacitance: 960 pF
- Output Capacitance: 180 pF
- Reverse Transfer Capacitance: 140 pF
- Switching Delay Time: 14 ns
- Fall Time: 68 ns
- Total Gate Charge: 7 nC
- Gate-to-Source Charge: 2.0 nC
- Gate-to-Drain (Miller) Charge: 28 nC
- Diode Forward Voltage: 0.82 V at -5A
- Package: TL-H reel for surface mounting, minimum 3,000 pcs/reel

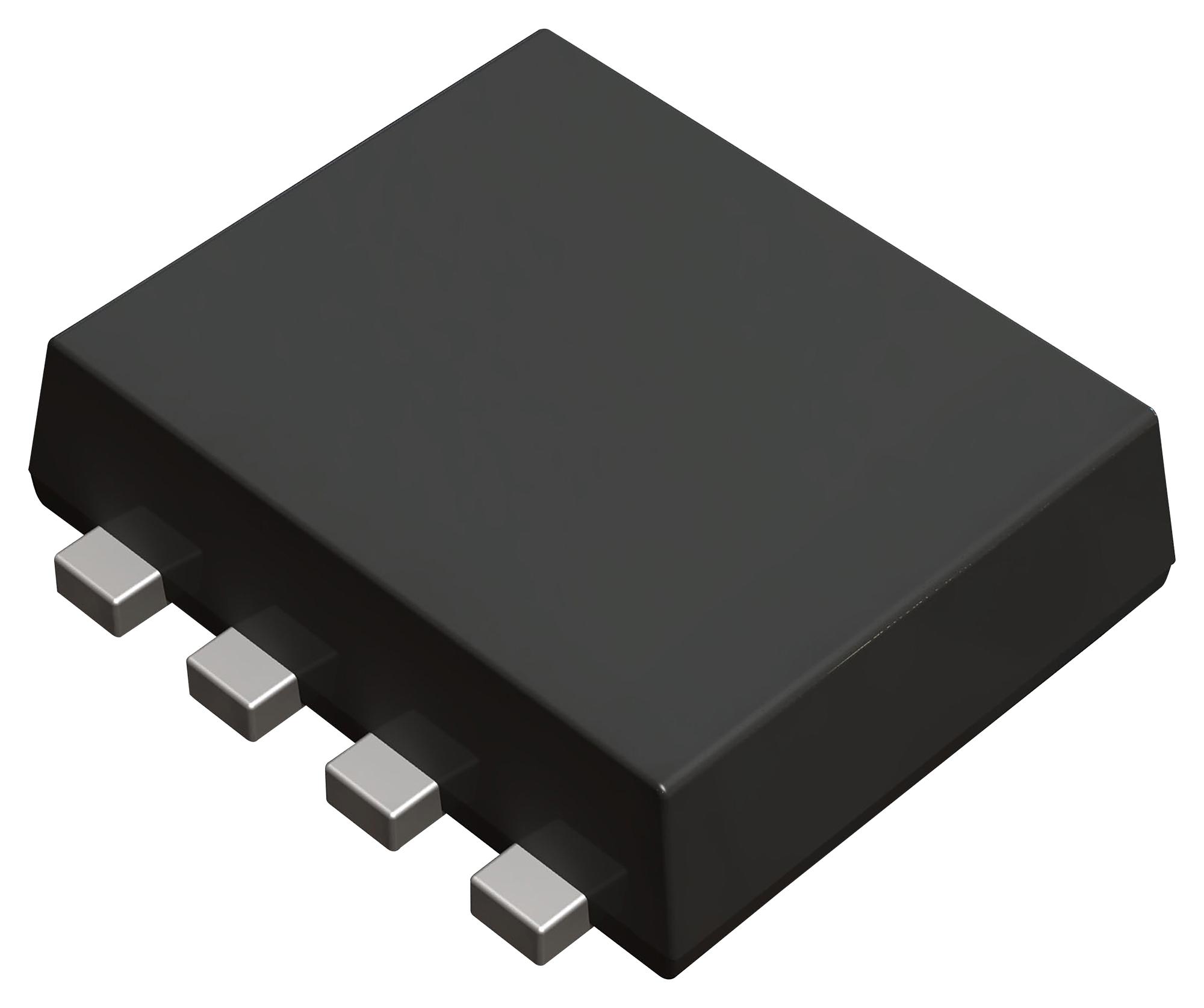

Buy the Buy ON Semiconductor ECH8654TLH Part Number ECH8654TLH Online
Order the ON Semiconductor Power MOSFET ECH8654TLH online today to benefit from fast delivery and competitive pricing. This P-Channel device is perfect for load switching, power management, and motor control applications, featuring low ON-resistance, excellent switching performance, and halogen-free construction. Designed for durability and efficiency, it ensures reliable operation in demanding electronic systems. Whether for industrial use or consumer electronics, purchasing online guarantees authenticity, technical support, and prompt fulfillment for your engineering needs.
Buy ON Semiconductor ECH8654TLH now and experience unmatched power switching efficiency with low ON-resistance and fast response times for your electronic projects.
Frequently Asked Questions
Where can I buy ONSEMI ECH8654TLH?
You can click on the BUY or RFQ button to purchase ECH8654TLH from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ECH8654TLH?
You can download the ECH8654TLH datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ECH8654TLH?
ONSEMI
