ONSEMI NTH4L160N120SC1 Power MOSFET
The NTH4L160N120SC1 is a high-performance N-channel SiC power MOSFET designed for demanding applications like UPS systems, DC/DC converters, and inverters. Featuring a 1200 V drain-to-source voltage, low gate charge, and high-speed switching capabilities, it ensures efficiency and reliability in power management. This device is fully avalanche tested, ROHS compliant, Pb-free, and capable of operating at temperatures up to 175°C. Its ultra-low Rds(on) of 160 mΩ at 20 V, combined with low gate charge of 34 nC, makes it ideal for fast switching and power-intensive circuits. The TO247-4L package offers robust thermal performance and ease of installation, making it suitable for various industrial and automation applications.
ONSEMI NTH4L160N120SC1 Power MOSFET Specifications:
- Drain-to-Source Voltage: 1200 V
- Continuous Drain Current at Tc=25°C: 173 A
- Power Dissipation: 1 W at Tc=25°C, 555 W at Tc=100°C
- Pulsed Drain Current: 69 A (low), 140 A (single pulse, tp=10us)
- Gate-to-Source Voltage: -15/+25 V (recommendation: -5/+20 V)
- Gate Charge: 34 nC
- Output Capacitance (Coss): 49.5 pF
- On Resistance (Rds(on)): 160 mΩ at 20 V, 224 mΩ at 25°C
- Reverse Recovery Energy: 128 mJ
- Operating Junction Temperature Range: -55°C to 175°C
- Thermal Resistance Junction-to-Ambient: 40°C/W
- Package: TO-247-4L
- Maximum Soldering Temperature: 300°C for 5 seconds
- Certified RoHS and Pb-Free Compliance

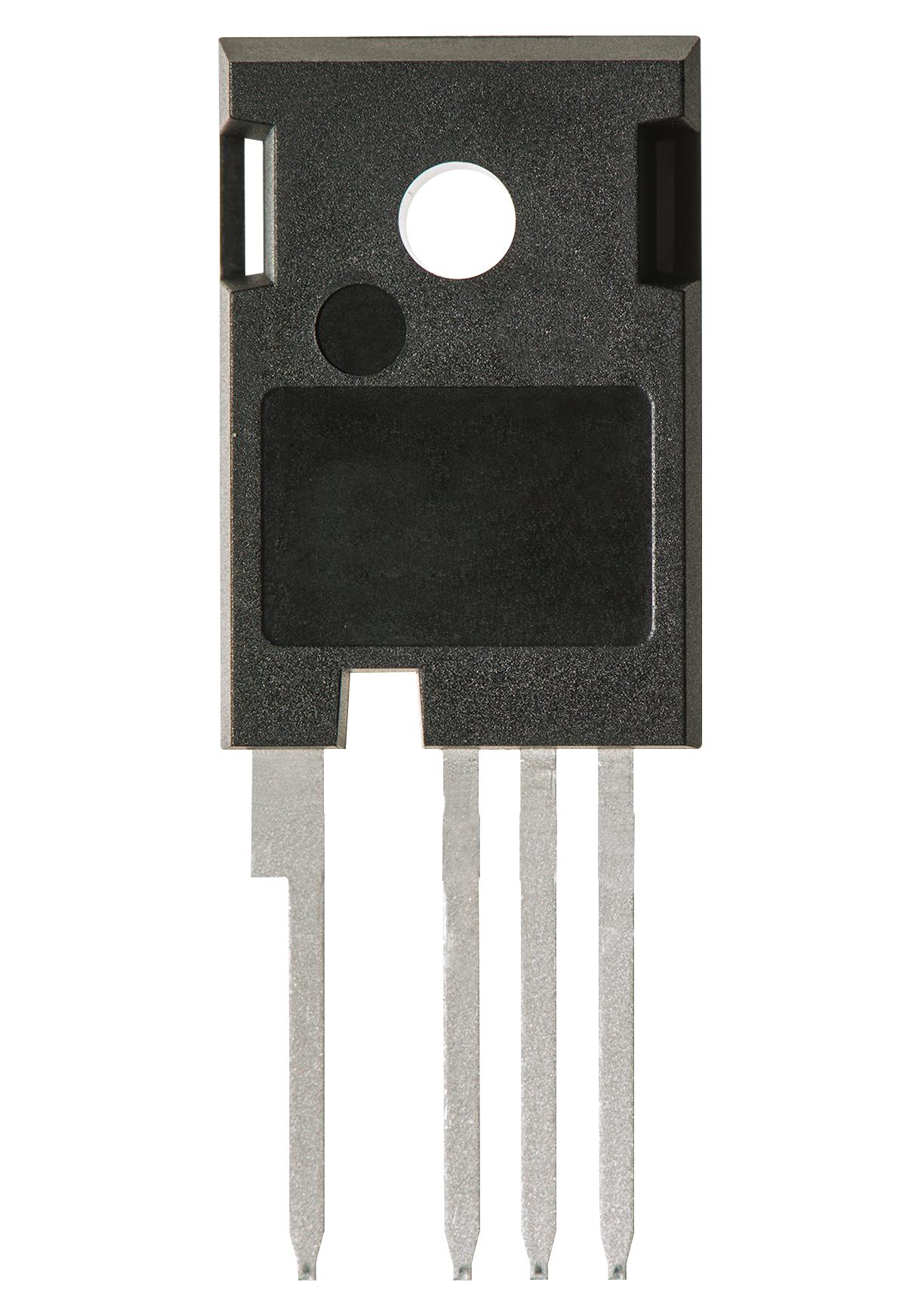

Buy the Buy ON Semiconductor NTH4L160N120SC1 Power MOSFET Part Number NTH4L160N120SC1 Online
Purchase the ON Semiconductor NTH4L160N120SC1 power MOSFET online today to enhance your power management systems. Featuring a high drain-to-source voltage of 1200 V, low Rds(on), and fast switching capabilities, it ensures high efficiency in demanding applications like UPS, DC/DC converters, and inverters. Its robust TO-247-4L package allows easy installation and excellent thermal performance. Fully avalanche tested, RoHS compliant, and capable of operating at temperatures up to 175°C, this MOSFET is ideal for industrial automation and power switching needs, providing reliable operation and optimized performance.
Buy ON Semiconductor NTH4L160N120SC1 power MOSFET now and experience unmatched reliability, efficient switching, and high-temperature operation for your industrial power needs.
Frequently Asked Questions
Where can I buy ONSEMI NTH4L160N120SC1?
You can click on the BUY or RFQ button to purchase NTH4L160N120SC1 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTH4L160N120SC1?
You can download the NTH4L160N120SC1 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTH4L160N120SC1?
ONSEMI
