ONSEMI NC7WZ86K8X Dual XOR Gate
The NC7WZ86 is a high-speed dual 2-input XOR logic gate from Fairchild's TinyLogic Ultra High Speed Series, fabricated with advanced CMOS technology for broad voltage operation from 1.65V to 5.5V. It offers high output drive capability, ultra low static power dissipation, and overvoltage-tolerant inputs, making it ideal for compact logic functions in space-constrained digital circuits. The device features a space-saving MicroPak surface mount package, with low propagation delay times and noise/EMI reduction circuitry, suitable for various high-speed, low-power applications across a wide voltage range.
ONSEMI NC7WZ86K8X Dual XOR Gate Specifications:
- Supply Voltage Range: 1.65V to 5.5V
- Input Voltage Tolerance: up to 7V independent of Veg
- Propagation Delay: 20-130 ns (typical 20-30 ns depending on conditions)
- Power Dissipation: 250 mW at 85°C
- Output Drive Capability: +24 mA at 3V
- Input & Output Impedance: High, with power down high impedance states
- Operating Temperature: -55°C to +150°C
- Junction Temperature: 150°C
- Package Types: US8 surface mount, MicroPak Pb-Free
- Excellent noise/EMI reduction circuitry
- Overvoltage tolerant inputs for 5V to 3V translation
- Designed for high-speed logic functions in digital systems

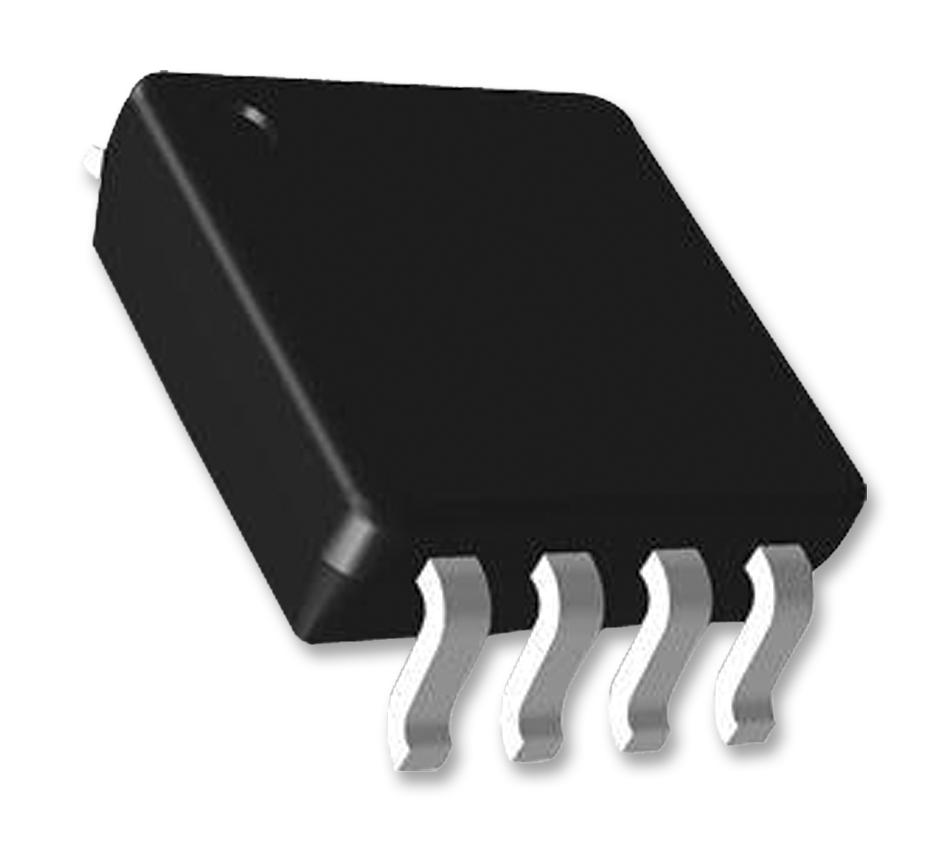

Buy the Fairchild NC7WZ86K8X – Reliable XOR Gate for Industrial Applications
Purchase the Fairchild NC7WZ86K8X online today to enhance your digital circuits with ultra high-speed performance, low static power, and overvoltage tolerance. This space-saving surface mount device offers broad voltage compatibility from 1.65V to 5.5V, ensuring reliable operation across diverse applications. With high output drive capacity and noise reduction circuitry, it is ideal for modern high-speed logic implementations. Order now and benefit from quick delivery, quality assurance, and competitive pricing, perfect for engineers and circuit designers seeking trustworthy logic components.
Get Fairchild NC7WZ86K8X today—built for high-speed digital logic and low power consumption, perfect for space-efficient electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI NC7WZ86K8X?
You can click on the BUY or RFQ button to purchase NC7WZ86K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7WZ86K8X?
You can download the NC7WZ86K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7WZ86K8X?
ONSEMI
