ONSEMI MC74HC08ADTR2G Quad 2-Input AND Gate
The MC74HC08ADTR2G is a high-performance quadruple 2-input AND gate utilizing Silicon-Gate CMOS technology. It features a pinout identical to LS08, ensuring compatibility with standard CMOS outputs and LSTTL signals with pull-up resistors. Capable of driving up to 10 LSTTL loads, the device interfaces directly with CMOS, NMOS, and TTL logic levels. With a low input current of 1µA and high noise immunity, it meets JEDEC standard No.7A. The chip contains 24 FETs, equivalent to 6 logic gates, making it ideal for industrial and automation systems requiring reliable AND gate functions.
ONSEMI MC74HC08ADTR2G Quad 2-Input AND Gate Specifications:
- Number of Gates: 4
- Input Voltage Range: 2.0 V to 6.0 V
- Output Drive Capability: 10 LSTTL loads
- Output Voltage: Vout = 0.1V or Voc - 0.1V at specified currents
- Input Current: 1µA (max at 25°C)
- Input Voltage: 0 V to Vcc
- Maximum DC Supply Voltage: 6.0 V
- Operating Temperature Range: -55°C to +125°C
- Propagation Delay: 15-110 ns depending on conditions
- Power Dissipation: 500 mW (SOIC), 450 mW (TSSOP)
- Package Types: SOIC-14, TSSOP-14
- JEDEC Standard: No. 7A compliant
- Device Contains: 24 FETs, 6 equivalent gates
- RoHS and Pb-Free compliant

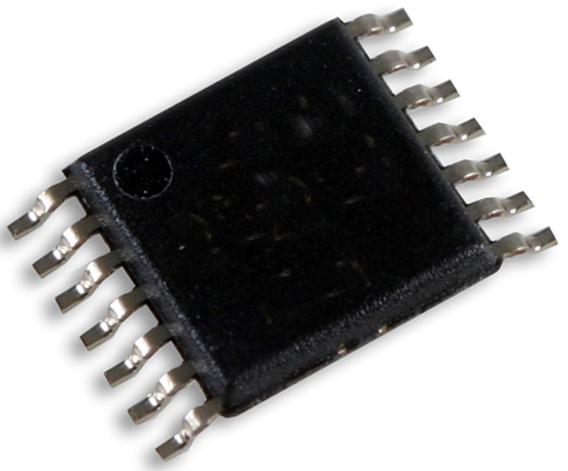

Buy the Buy ON Semiconductor MC74HC08ADTR2G Quad 2-Input AND Gate Online
Purchase the ON Semiconductor MC74HC08ADTR2G today and enjoy high-speed, reliable logic gate performance. Its CMOS technology ensures low power consumption, high noise immunity, and seamless interfacing with CMOS, NMOS, and TTL logic levels. Ideal for industrial control, automation, and electronic systems, this quad 2-input AND gate provides robust performance across a wide temperature range. Order now and optimize your circuit designs with this versatile, high-quality device designed for demanding applications requiring dependable digital logic functions.
Buy ON Semiconductor MC74HC08ADTR2G quad 2-input AND gate now and experience unmatched reliability and performance for industrial automation and digital logic circuits.
