ONSEMI FQB22P10TM Power MOSFET
The FQB22P10 is a P-Channel enhancement mode power MOSFET designed for high-efficiency switching applications. With a drain-source voltage of -100 V and continuous drain current of -22 A at 25°C, it features low gate charge and low Crss, making it suitable for power supplies, motor control, and audio amplifiers. Its robust avalanche energy rating and high junction temperature capability ensure reliable performance in demanding environments, offering superior switching performance, reduced on-resistance, and excellent thermal stability for modern electronic systems.
ONSEMI FQB22P10TM Power MOSFET Specifications:
- Drain-Source Voltage: -100 V
- Drain Current (continuous): -22 A @25°C, -15.6 A @100°C
- Pulsed Drain Current: 88 A
- Gate-Source Voltage: ±30 V
- Single Pulsed Avalanche Energy: 710 mJ
- Repetitive Avalanche Energy: 125 mJ
- Total Gate Charge: 40-50 nC
- Gate Threshold Voltage: -20 to -40 V
- On-Resistance: 0.096-0.125 Ω at Vgs = -10 V
- Switching Delay Time: 17-45 ns
- Maximum Junction Temperature: 175°C
- Thermal Resistance (Junction to Case): 1.2 °C/W
- Thermal Resistance (Junction to Ambient): Max 62.5 °C/W
- Operation Temperature Range: -55°C to +175°C
- Package: D2-PAK, Reel Size: 330mm, Tape Width: 24mm

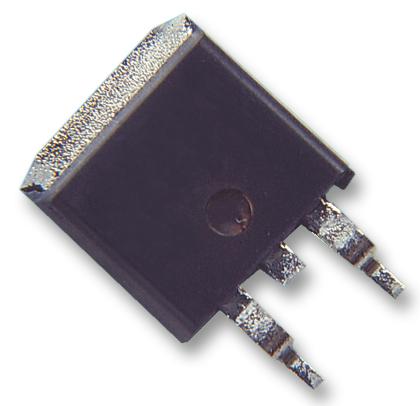

Buy the Fairchild Series Power MOSFET: FQB22P10
Discover the high-quality power MOSFET designed for demanding applications like power supplies, motor control, and audio amplifiers. The FQB22P10 features a -100 V drain-source voltage, -22 A continuous drain current, low gate charge, and high avalanche energy. Its excellent thermal performance and low on-resistance ensure efficient operation and durability. Ideal for engineers and technicians seeking dependable components for high-power switching, this device guarantees superior performance, thermal stability, and long-term reliability in your electronic designs. Purchase online today for rapid delivery and technical support.
Order your Fairchild Series FQB22P10 power MOSFET today and enhance your electronic projects with high efficiency and reliable switching performance.
Frequently Asked Questions
Where can I buy ONSEMI FQB22P10TM?
You can click on the BUY or RFQ button to purchase FQB22P10TM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQB22P10TM?
You can download the FQB22P10TM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQB22P10TM?
ONSEMI
