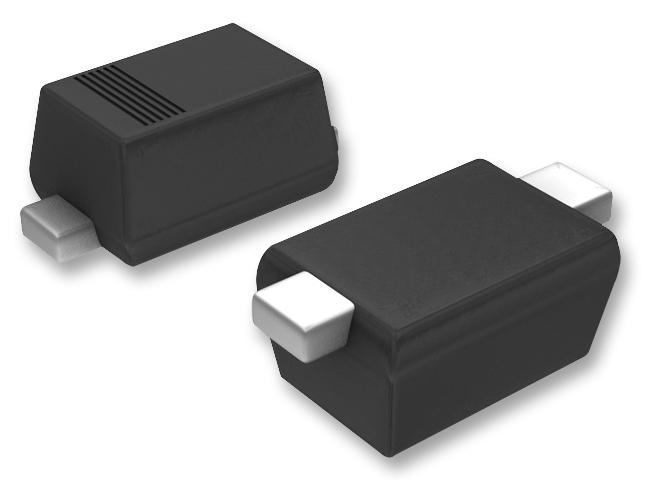

ONSEMI MM5Z4V7 Zener Diode
The MM5Z4V7 is a surface-mount Zener diode in a compact SOD523F package, designed for precise voltage regulation applications. It features a Zener voltage of 4.7V with a maximum Zener impedance of 5 ohms at 22mA. The diode operates within a wide temperature range from -55°C to +150°C and can dissipate up to 200mW power, making it suitable for space-constrained circuit designs needing stable voltage references and surge suppression.
ONSEMI MM5Z4V7 Zener Diode Specifications:
- Package: SOD523F, 2-lead surface mount
- Maximum Power Dissipation: 200 mW
- Zener Voltage (Vz): 4.7V at test current
- Zener Impedance (Zz): 5 ohms at 22mA
- Temperature Range: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 500 °C/W
- Lead Finish: Matte Tin (Sn)
- Moisture Sensitivity Level: Level 1
- Compliance: RoHS, Pb-Free
- Reel Size: 7 inch, Tape width: 12mm, Quantity: 8,000 units
- Dimensions: Height under 0.70 mm, land pattern conforming to JEITA SC-79
Buy the ON Semiconductor Series Zener Diode: MM5Z4V7
Experience reliable voltage regulation with the ON Semiconductor MM5Z4V7 Zener diode. Designed in a small SOD523F package, it offers a maximum dissipation of 200mW and a Zener voltage of 4.7V. Its wide operating temperature from -55°C to +150°C and compliance with RoHS standards ensure suitability for various demanding applications. Perfect for surge suppression, voltage references, and circuit protection in space-constrained designs, this diode ensures consistent performance and long-term reliability in your electronic systems.
Get ON Semiconductor MM5Z4V7 diode today—compact, high-reliability Zener device for precise voltage regulation and surge suppression.
Frequently Asked Questions
Where can I buy ONSEMI MM5Z4V7?
You can click on the BUY or RFQ button to purchase MM5Z4V7 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM5Z4V7?
You can download the MM5Z4V7 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM5Z4V7?
ONSEMI
