ONSEMI KSA992FATA PNP transistor
The KSA992 is a PNP epitaxial silicon transistor designed for audio frequency low-noise amplification. Features include complementarity to KSC1845 devices, Pb-Free construction, collector-emitter voltage of 120V, and maximum collector current of 50mA. It operates reliably within junction temperature limits up to 150°C, with thermal resistance of 250°C/W and power dissipation of 500mW. Encased in a TO-92 package, it offers high DC current gain, low saturation voltage, and a bandwidth of up to 100 MHz, suitable for various analog and switching applications.
ONSEMI KSA992FATA PNP transistor Specifications:
- Collector-Base Voltage: 120V
- Collector-Emitter Voltage: 120V
- Emitter-Base Voltage: 5V
- Collector Current: 50mA
- Power Dissipation: 500mW
- Junction Temperature: 150°C
- Thermal Resistance: 250°C/W
- Operating Temperature Range: -55°C to 150°C
- Voltage Gain Bandwidth Product: 50-100 MHz
- Output Capacitance: 2-3 pF at -30V
- Collector Cut-Off Current: up to 50nA
- Collector-Emitter Saturation Voltage: 0.09-0.30 V
- Base-Emitter On Voltage: -0.55 to -0.65 V
- Case Type: TO-92
- Package Dimensions: 4.83 x 4.76 mm

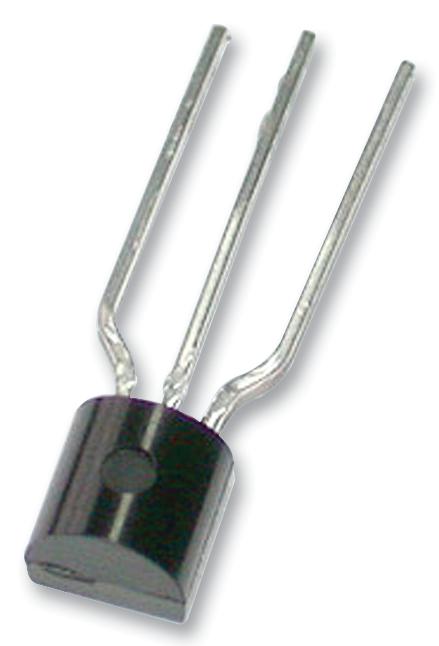

Buy the Buy ON Semiconductor KSA992 Part Number KSA992FATA Online
Get the ON Semiconductor KSA992FATA PNP transistor online for high-gain, low-noise audio amplification. Suitable for analog circuits, it features a TO-92 package, 120V collector-emitter voltage, and operates up to 150°C junction temperature. Its low saturation voltage ensures energy efficiency, while the bandwidth reaches 100 MHz for high-frequency applications. Pb-Free construction guarantees environmental compliance, making it ideal for a wide range of electronic and consumer devices. Order now for fast delivery and dependable performance in your projects.
Order your ON Semiconductor KSA992FATA today and ensure reliable, low-noise amplification in your analog and switching projects.
Frequently Asked Questions
Where can I buy ONSEMI KSA992FATA?
You can click on the BUY or RFQ button to purchase KSA992FATA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part KSA992FATA?
You can download the KSA992FATA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of KSA992FATA?
ONSEMI
