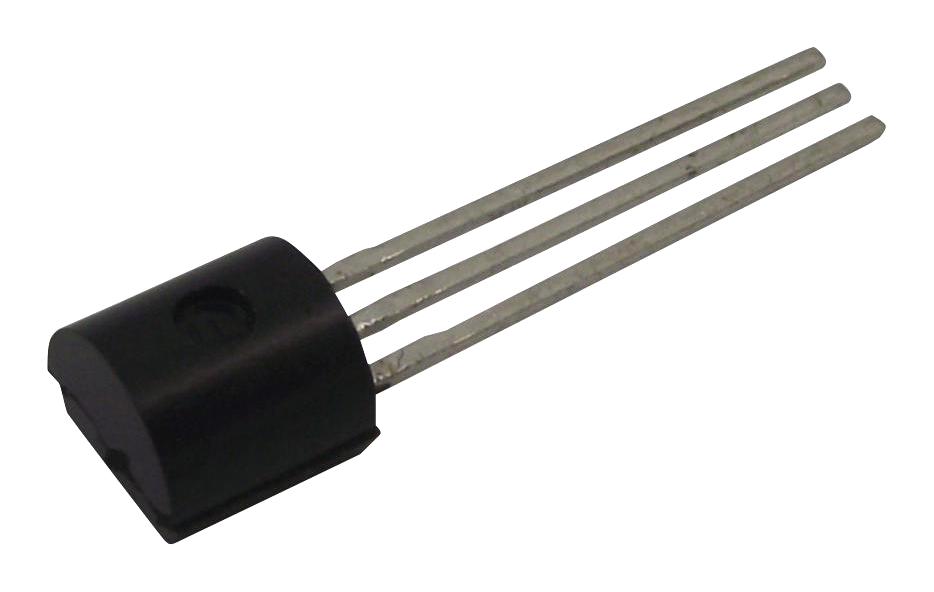

ONSEMI KSA916YTA PNP Silicon Transistor
The KSA916YTA is a PNP epitaxial silicon transistor designed for audio power amplification and driver stage applications. Featuring a TO-92L package, it provides collector-base and collector-emitter voltages of -120 V, with a collector current of -800 mA. Its thermal characteristics include a junction temperature of 150°C and a power dissipation of 900 mW. Suitable for low to medium power amplification, it offers DC current gains from 80 to 240, and a collector-emitter saturation voltage of 1 V, essential for reliable audio and driver circuits.
ONSEMI KSA916YTA PNP Silicon Transistor Specifications:
- Collector-Base Voltage: -120 V
- Collector-Emitter Voltage: -120 V
- Emitter-Base Voltage: 5 V
- Collector Current: -800 mA
- Junction Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Power Dissipation: 900 mW (with mounting), 3 W (resistive power)
- Thermal Resistance Junction-to-Ambient: 130°C/W
- Collector-Base Breakdown Voltage: -120 V
- Collector-Emitter Breakdown Voltage: -120 V
- Emitter-Base Breakdown Voltage: 5 V
- DC Current Gain: 80 to 240
- Collector-Emitter Saturation Voltage: 1 V
- Current Gain Bandwidth Product: 120 MHz
- Output Capacitance: 40 pF
- Thermal Derating: 7.2 mW/°C above 25°C
Buy the Fairchild KSA916YTA – Reliable PNP Transistor for Industrial Applications
Purchase the Fairchild KSA916YTA online today to ensure your circuits benefit from a high-quality PNP transistor. Designed for audio power and driver stage applications, it features a TO-92L package, collector-base and collector-emitter voltages of -120 V, and a collector current of -800 mA. Its excellent thermal performance includes a junction temperature of 150°C and power dissipation of 900 mW. Ideal for low to medium power amplification, it offers a DC gain ranging from 80 to 240, providing dependable performance for your electronic projects with ease and confidence.
Buy Fairchild KSA916YTA now and experience unmatched reliability and performance in audio and driver amplification circuits.
Frequently Asked Questions
Where can I buy ONSEMI KSA916YTA?
You can click on the BUY or RFQ button to purchase KSA916YTA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part KSA916YTA?
You can download the KSA916YTA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of KSA916YTA?
ONSEMI
