ONSEMI FPF1204UCX Load Switch
The FPF1204 load switch is an ultra-compact P-channel MOSFET-based device designed for controlling power distribution in portable, consumer, and industrial applications. It features slew-rate control to prevent inrush currents, low ON resistance, and an output discharge function for fast load clearing. Operating from 1.2 to 5.5 V, it ensures minimal quiescent current and high ESD protection. Its wafer-level chip-scale package (WLCSP) measures 0.76 mm x 0.76 mm, making it suitable for space-constrained designs like mobile devices, GPS modules, and consumer electronics.
ONSEMI FPF1204UCX Load Switch Specifications:
- Input Voltage Range: 1.2 V to 5.5 V
- Maximum Continuous Switch Current: 2.2 A
- Power Dissipation: 1.0 W at 25°C
- Operating Temperature Range: -65°C to +150°C

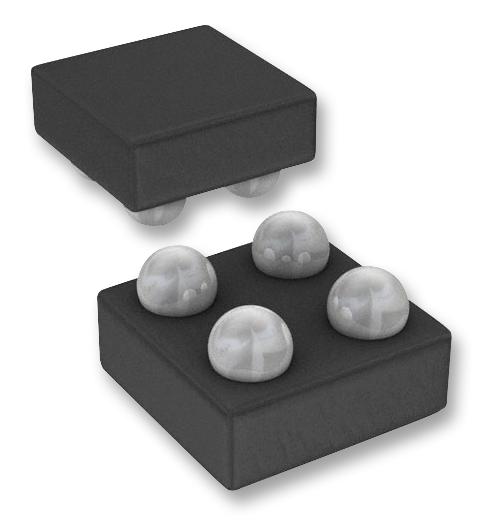

- Package: 4-bump Wafer-Level Chip-Scale Package (WLCSP), 0.76 mm x 0.76 mm
- On Resistance: 90 mΩ at Vout=1.8 V, 185 mΩ at Vout=1.2 V
- ESD Protection: >7 kV HBM, 2 kV CDM
- Quiescent Current: <1.5 pA
- Turn-On Delay: 70 μs, Turn-Off Delay: 40 μs
- Input Logic Level: HIGH at 1.15 V, LOW at 0.65 V
- Discharge Function: Included for quick load clearance
- Designed for low voltage applications in portable and smart consumer electronics
Buy the Buy ON Semiconductor FPF1204 Part Number FPF1204UCX Online
Get the ON Semiconductor FPF1204 load switch online today to improve your portable device power management. This ultra-small, space-efficient device offers slew-rate control, fast discharge, low ON resistance, and excellent ESD protection. Its 0.76 mm x 0.76 mm wafer-level chip-scale package makes it ideal for compact electronic systems such as smartphones, GPS modules, and wearable devices. Designed for applications requiring efficient power switching with minimal power loss and high reliability, it is essential for modern portable and consumer electronics projects.
Order your ON Semiconductor SeriesF P F1204 load switch today and ensure reliable power control with fast discharge and low ON resistance for your mobile devices.
