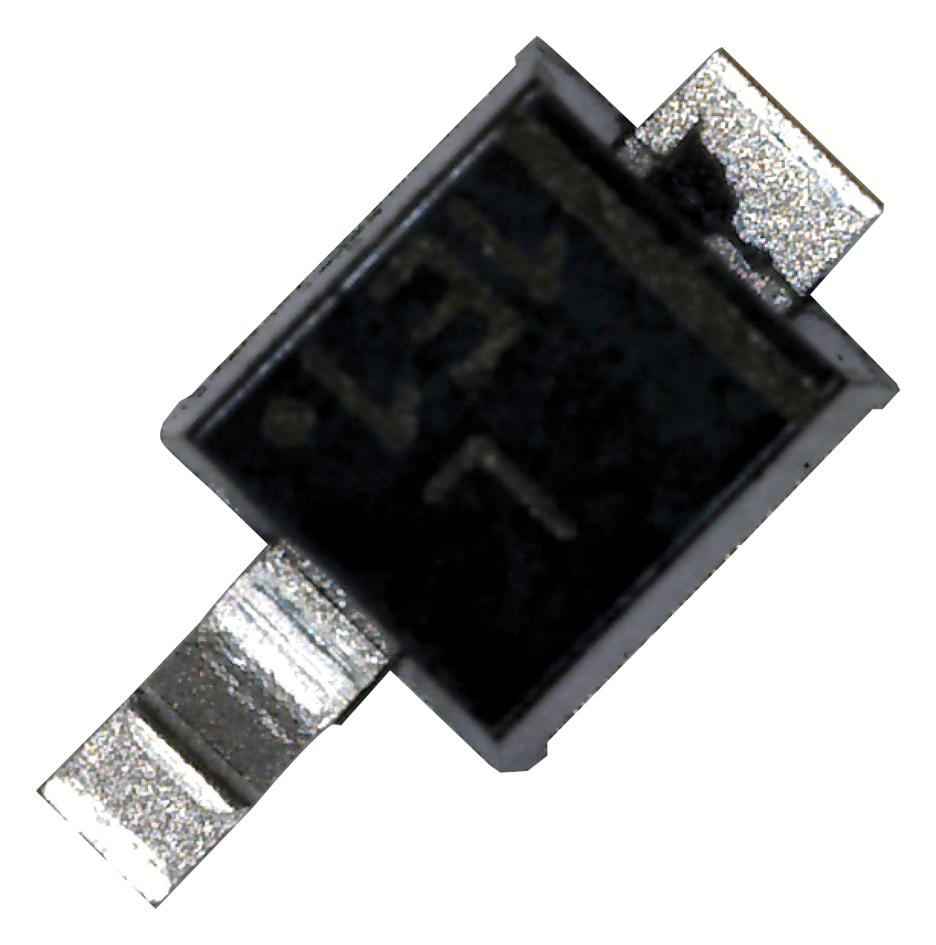

ONSEMI MBRM110ET1G Schottky Power Rectifier
The Schottky PowerRectifier employed in this micro miniature surface-mount device offers optimal forward voltage drop and reverse current performance. Designed with a barrier metal and epitaxial construction, it features a low profile of less than 1.1 mm height, making it ideal for portable, battery-powered devices like smartphones, chargers, and laptops. Its advanced packaging ensures high thermal efficiency and reliability, qualified for automotive and industrial applications, and capable of handling up to 1 A current and 10 V reverse voltage, withstanding high junction temperatures and offering excellent ESD protection.
ONSEMI MBRM110ET1G Schottky Power Rectifier Specifications:
- Maximum Reverse Voltage: 10 V
- Average Rectified Forward Current: 1.0 A
- Peak Surge Current: 50 A
- Operating Junction Temperature: -55°C to +150°C
- Thermal Resistance, Junction-to-Lead: 35 SCM
- Thermal Resistance, Junction-to-Tab: 23
- Thermal Resistance, Junction-to-Ambient: 277
- Maximum Instantaneous Forward Voltage: 0.455 V at 0.1 A, 0.360 V at 1.0 A, 0.540 V at 2.0 A
- Maximum Instantaneous Reverse Current: 5 μA at 25°C, 300 μA at 100°C
- Capacitance: 8 pF at 0 V reverse voltage
- Soldering Temperature: Max 260°C for 10 seconds
- Package Type: Surface Mount, JEDEC DO-216AA
- Size: Length 4.54 mm, Width 2.67 mm, Height <1.1 mm
- Pb-Free, Meets UL 94 V-0 Flammability Requirements
- ESD Rating: Human Body Model > 16 kV, Machine Model > 400 V
Buy the Buy ON Semiconductor Schottky Power Rectifier Part Number MBRM110ET1G Online
Secure your ON Semiconductor MBRM110ET1G Schottky Power Rectifier today and enhance your electronic designs with a compact, high-performance, low-profile surface mount device. Its excellent thermal characteristics, high surge current handling, and low forward voltage drop make it ideal for portable and battery-powered applications such as smartphones, laptops, chargers, and industrial power supplies. Trust in the reliability, advanced packaging, and high efficiency that this rectifier provides, ensuring optimal performance for your power management solutions. Purchase online now to streamline your project and benefit from fast delivery and quality assurance.
Buy ON Semiconductor MBRM110ET1G now and experience unmatched reliability and top performance for high efficiency power management in space-constrained applications.
Frequently Asked Questions
Where can I buy ONSEMI MBRM110ET1G?
You can click on the BUY or RFQ button to purchase MBRM110ET1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBRM110ET1G?
You can download the MBRM110ET1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBRM110ET1G?
ONSEMI
