ONSEMI MC34166D2TR4G Switching Regulator
The MC34166 series are high-performance fixed frequency switching regulators designed for dc-to-dc conversions, including step-down, inverting, and step-up applications. They feature an internal temperature compensated reference, a 72 kHz oscillator with on-chip timing, a latching pulse width modulator, a high-gain error amplifier, and a high-current output switch capable of over 3.0A. Protective features include cycle-by-cycle current limiting, undervoltage lockout, thermal shutdown, and a low power standby mode. Available in surface-mount D²PAK and TO-220 packages, these devices are suitable for automotive, industrial, and consumer electronics requiring efficient and reliable voltage regulation.
ONSEMI MC34166D2TR4G Switching Regulator Specifications:
- Output Switch Current in Excess of 3.0 A
- Fixed Frequency Oscillator (72 kHz) with On-Chip Timing
- Provides 5.05 V Output without External Resistor Divider
- Precision 2% Reference
- 0% to 95% Output Duty Cycle
- Cycle-by-Cycle Current Limiting
- Undervoltage Lockout with Hysteresis
- Internal Thermal Shutdown
- Operation from 7.5 V to 40 V
- Standby Mode reduces power supply current to 36 μA
- Package Options: Surface Mount D²PAK, TO-220, Vertical, Horizontal, and Vertical Mounts
- Maximum Junction Operating Temperature: +150°C
- Operating Ambient Temperature Range: -40°C to +85°C (varies by version)
- Thermal Resistance Junction-to-Case: 5°C/W
- Thermal Resistance Junction-to-Ambient: 65°C/W (D²PAK) variants
- ESD Protection exceeding human body model 2000 V

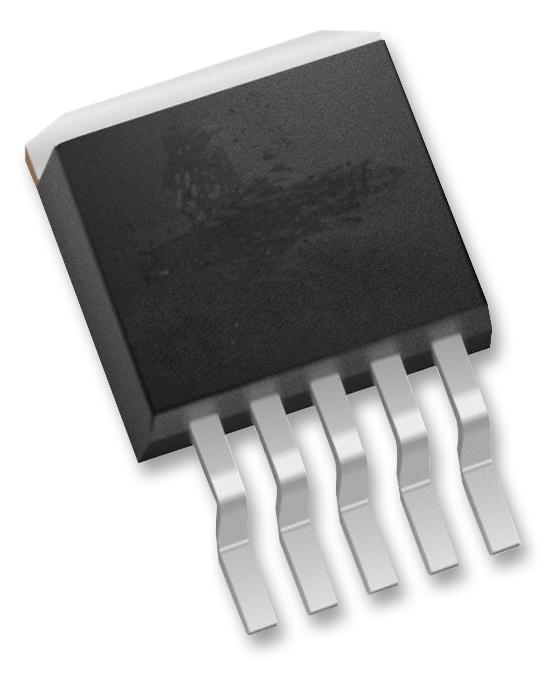

Buy the Buy ON Semiconductor MC34166 Part Number MC34166D2TR4G Online
Order the ON Semiconductor MC34166D2TR4G now to ensure efficient voltage regulation for your dc-dc converter projects. Designed for step-down, inverting, and step-up configurations, this high-performance regulator supports over 3A load current with built-in protections like cycle-by-cycle current limiting, thermal shutdown, and undervoltage lockout. Compact and reliable, it is ideal for automotive, industrial, and consumer electronics. Benefit from fast delivery and secure online purchasing options for this versatile power switching device that guarantees stable operation in demanding environments.
Get ON Semiconductor MC34166D2TR4G today—built for high current output and reliable voltage regulation in industrial and automotive applications.
Frequently Asked Questions
Where can I buy ONSEMI MC34166D2TR4G?
You can click on the BUY or RFQ button to purchase MC34166D2TR4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC34166D2TR4G?
You can download the MC34166D2TR4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC34166D2TR4G?
ONSEMI
