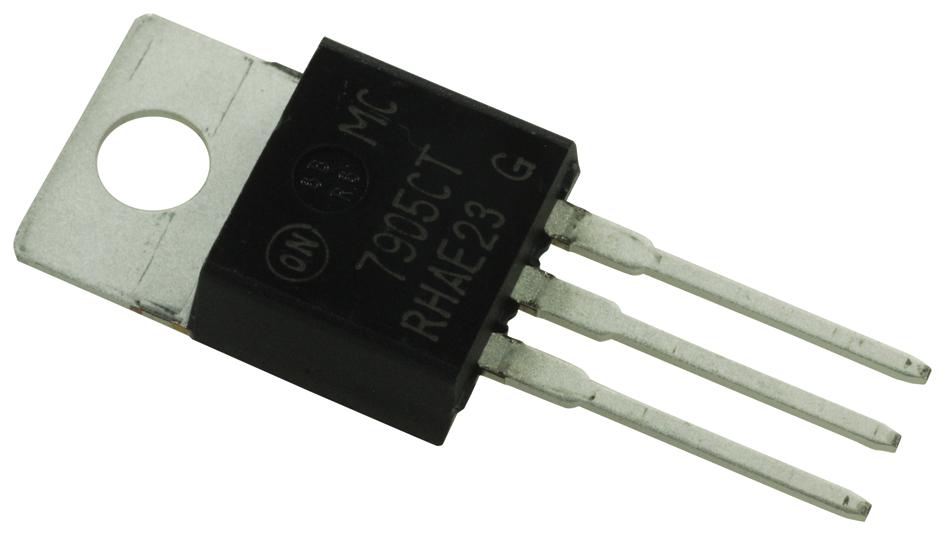

ONSEMI MC7905CTG Negative Voltage Regulator
The MC7905CTG is a low dropout fixed voltage negative regulator in an LDO package. It provides a stable negative voltage output with multiple voltage options, commonly used in MECL systems. The regulator features current limiting, thermal shutdown, and safe-area compensation, ensuring rugged performance under various operating conditions. With proper heat sinking, it can deliver output currents exceeding 1A. No external components are required, and it includes internal thermal overload protection, short-circuit current limiting, and safe-area transistor compensation. The device operates over a temperature range of 0°C to 125°C. Typical applications include industrial electronics. Note that due to high market demand, lead times may be extended, and delivery dates are subject to change. The product is exempt from discounts.
ONSEMI MC7905CTG Negative Voltage Regulator Specifications:
- Package: TO-220
- Output Voltage: -5.0 V (tolerance ±2%)
- Maximum Output Current: >1A with heatsinking
- Thermal Shutdown: Yes
- Short Circuit Current Limiting: Yes
- Safe-Area Compensation: Yes
- Operating Temperature Range: 0°C to 125°C
- Number of Active Transistors: 26
- Input Voltage Range: -7.0 V to -25 V
- Input Voltage (typical): -10 V
- Output Voltage Tolerance: 2%
- Dropout Voltage: approximately 2 V at 1A load
- Thermal Resistance, Junction-to-Ambient: 65°C/W
- Internal Protection: Thermal overload, short circuit
- Features: No external components required
- Application: Industrial electronics, negative voltage regulation, MECL systems, control circuits, electronics testing
Buy the ON Semiconductor Series MC7900 Negative Voltage Regulator: MC7905CTG
Purchase the ON Semiconductor MC7905CTG negative voltage regulator online today. Designed for industrial electronics, it provides a stable -5V output with internal protections, no external components needed, and can deliver over 1A with proper heatsinking. Its rugged design includes thermal shutdown and short circuit limiting, operates from 0°C to 125°C, and is ideal for control systems and testing equipment. Secure fast delivery and reliable performance to enhance your electronic projects with confidence.
Get ON Semiconductor MC7905CTG today—built for precision, long-lasting durability, and reliable negative voltage regulation in industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI MC7905CTG?
You can click on the BUY or RFQ button to purchase MC7905CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7905CTG?
You can download the MC7905CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7905CTG?
ONSEMI
