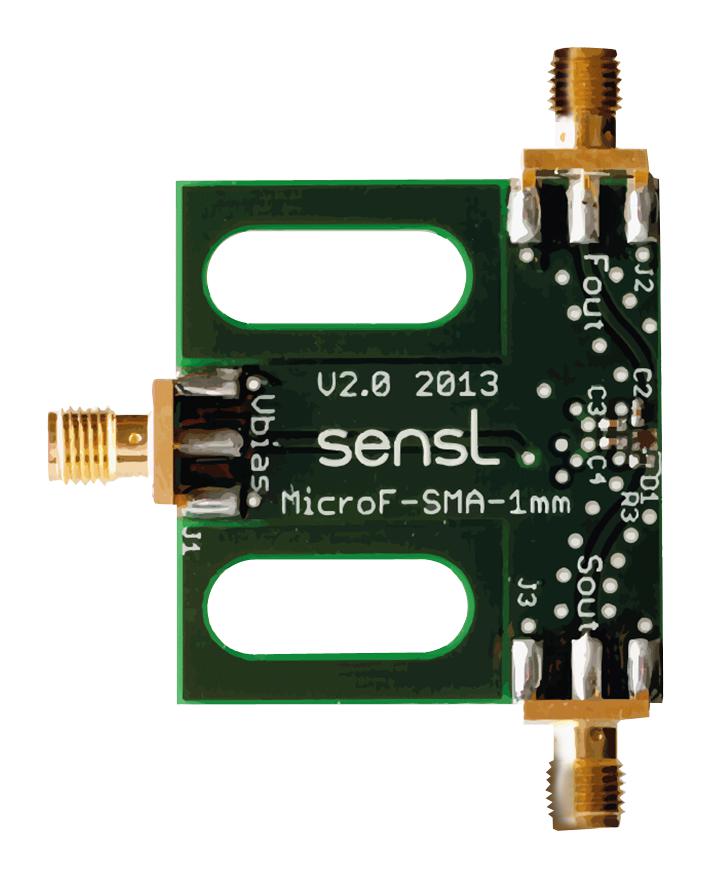

ONSEMI MICROFCSMA10010GEVB Silicon Photomultiplier Sensor
ON Semiconductors Silicon Photomultiplier Sensors (SiPM) offer high gain, excellent photon detection efficiency, and fast timing, ideal for medical, sensing, and R&D use. The C-Series provides low dark count rate and high PDE, with models in various sizes like 1 mm, 3 mm, and 6 mm, packaged in surface-mount tiles compatible with industry-standard processes. They are robust, low-voltage, and suited for applications demanding ultrafast timing, making them essential for biomedical, optical, and research instrumentation environments.
ONSEMI MICROFCSMA10010GEVB Silicon Photomultiplier Sensor Specifications:
- Active Area: 1x1 mm², 3x3 mm², 6x6 mm²
- Microcell Sizes: 10 um, 20 um, 35 um, 50 um, 100 um
- Package Dimensions: 1.5x1.8 mm², 4x4 mm², 7x7 mm²
- Peak Wavelength: 420 nm
- Spectral Range: 300-950 nm
- Photon Detection Efficiency: 14%-47% at Vbr + 2.5V or +5.0V
- Gain: Up to 3x10^8
- Dark Count Rate: 30-3400 kHz/mm²
- Rise Time (Fast Output): 0.3-1.0 ns
- Pulse Width (FWHM): 0.6-3.2 ns
- Microcell Recharge Time Constant: 5-159 ns
- Capacitance: 1-920 pF depending on size
- Breakdown Voltage (Vbr): 24.2-24.7 V
- Operating Temperature Range: -55°C to +85°C
- Maximum Storage Temperature: +105°C
- Soldering: Lead-free, reflow compatible
- Encapsulant: Clear transfer molding compound, Index 1.59 @ 420 nm
- Maximum Current: 6-20 mA depending on size
Buy the ON Semiconductors Series C Silicon Photomultiplier: MICROFCSMA10010GEVB
Purchase the ON Semiconductors MICROFCSMA10010GEVB Silicon Photomultiplier Sensor today to leverage high gain, excellent photon detection efficiency, and ultrafast timing. Perfect for biomedical, remote sensing, research, and measurement environments, this sensor offers outstanding performance in a compact, robust, and low-voltage package. Easy to integrate with industry-standard SMT processes, it provides the perfect solution for demanding optical and scientific applications. Order online now and empower your projects with top-tier photodetection technology with reliable fast timing and low dark count rates.
Buy ON Semiconductors MICROFCSMA10010GEVB now and experience unmatched reliability and high photon detection efficiency in biomedical and sensing applications.
Frequently Asked Questions
Where can I buy ONSEMI MICROFCSMA10010GEVB?
You can click on the BUY or RFQ button to purchase MICROFCSMA10010GEVB from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MICROFCSMA10010GEVB?
You can download the MICROFCSMA10010GEVB datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MICROFCSMA10010GEVB?
ONSEMI
