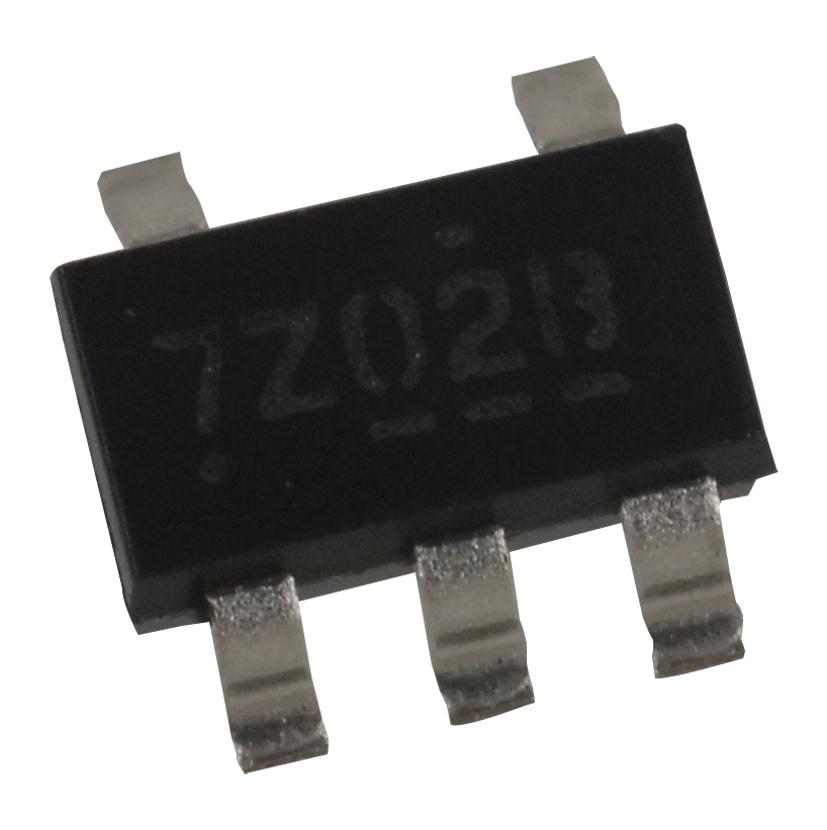

ONSEMI NC7SZ02M5 High-Speed Logic Gate
The NC7SZ02M5 is a single, two-input NOR gate from the ultra-high speed (UHS) TinyLogic series. Manufactured using advanced CMOS technology, it offers ultra-fast operation with high output drive capability while maintaining low static power consumption across a broad supply voltage range of 1.65V to 5.5V. When VCC is 0V, both inputs and outputs are high impedance. The device's inputs can tolerate voltages up to 6V, independent of the VCC voltage. Key features include a 2.4 ns propagation delay, a high output drive of ±24mA at 3V, and compatibility with LCX devices at 3.3V VCC. It supports power-down high-impedance states on inputs and outputs and has over-voltage tolerant inputs to facilitate 5V to 3V level translation. Additionally, it incorporates proprietary noise and EMI reduction circuitry, making it suitable for industrial applications.
ONSEMI NC7SZ02M5 High-Speed Logic Gate Specifications:
- Propagation Delay: 2.4 ns (Typical) into 50pF at 5V
- High Output Drive: ±24mA at 3V
- Broad Operating Range: 1.65V to 5.5V
- High-Impedance State: Power-down inputs and outputs
- Over-Voltage Tolerance: Inputs tolerate voltages up to 6V
- Power Dissipation: Low static power consumption
- Package Options: SOT23, SC70, MicroPak™
- Temperature Range: -40°C to +85°C
- Compatibility: Matches performance of LCX at 3.3V
- EMI Reduction: Proprietary noise circuitry
