ONSEMI NLSX0102FC2T2G Level Translator
The NLSX0102 is a compact, high-speed dual-supply bidirectional level translator ideal for low voltage signal interfacing in mobile devices, PCs, and SMBus applications. It operates over a wide voltage range of 1.5 V to 5.5 V, does not require a directional pin, and features integrated 10 kΩ pull-up resistors on I/O lines for open-drain use. With overvoltage-tolerant enable and I/O pins, it provides reliable performance in mixed-voltage systems, ensuring seamless data transfer, low skew, and high-speed communication up to 24 Mbps in a small flip-chip package.
ONSEMI NLSX0102FC2T2G Level Translator Specifications:
- Supply Voltage Vcc: 1.5 V to 5.5 V
- Supply Voltage Vy: 1.5 V to 5.5 V
- Operating Temperature: -40°C to +85°C
- Maximum Data Rate: 24 Mbps
- Propagation Delay: 23-45 ns depending on configuration
- Timing Skew: 0.7 ns
- Input Voltage High/Low: 1.5 V / 0.15 V at 15 V supply
- Output Voltage High/Low: Vcc or Voc, Vv is standard
- Overvoltage Tolerant EN and I/O pins to 5.5 V
- Integrated 10 kΩ pull-up resistors on I/O lines

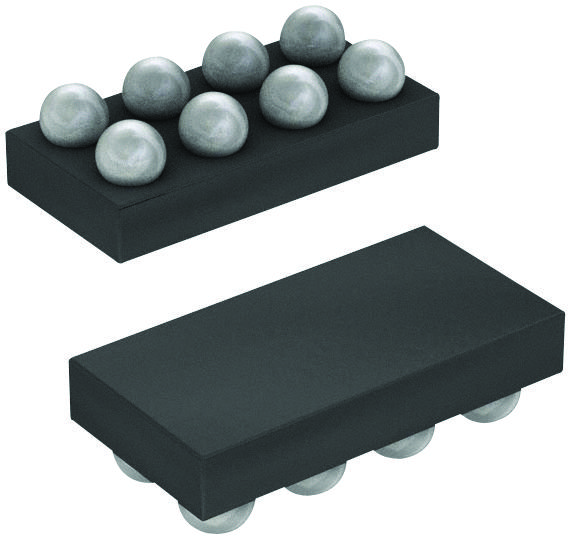

- Package: Flip-chip 8-pin, 0.9x1.9 mm, 0.5P case
- ESD protection: HBM > 7000 V
- Low power consumption and high-speed switching for portable electronics
- Supports bi-directional data transfer without directional pin
Buy the Buy ON Semiconductor NLSX0102FC2T2G Part Number NLSX0102FC2T2G Online
Order the ON Semiconductor NLSX0102FC2T2G level translator online today to seamlessly interface low-voltage signals in your electronic projects. This compact, high-speed device supports wide voltage ranges from 1.5 V to 5.5 V, making it suitable for various applications such as mobile phones, PC peripherals, and SMBus systems. With integrated pull-up resistors and overvoltage-tolerant pins, it ensures reliable data transfer with minimal skew and propagation delay up to 24 Mbps. Easy to integrate with its flip-chip package, it guarantees durability and precision for your design needs.
Get ON Semiconductor NLSX0102FC2T2G today—built for precision and long-lasting durability in low-voltage technology applications.
Frequently Asked Questions
Where can I buy ONSEMI NLSX0102FC2T2G?
You can click on the BUY or RFQ button to purchase NLSX0102FC2T2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NLSX0102FC2T2G?
You can download the NLSX0102FC2T2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NLSX0102FC2T2G?
ONSEMI
