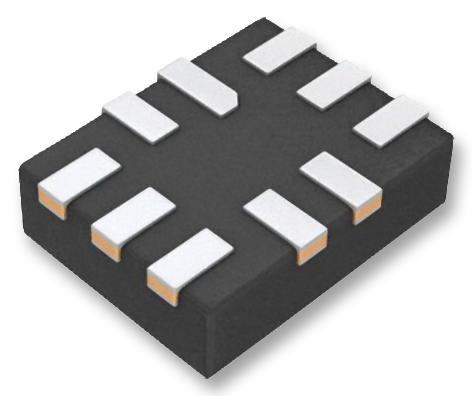

ONSEMI NS5A4684SMNTBG dual analog switch
The NS5A4684S is a CMOS dual SPDT analog switch offering ultra-low Ron of 0.6 Ω, high isolation of -68 dB at 100 kHz, and capable of handling currents up to 300 mA per switch. It features single voltage operation from 1.65 V to 5.5 V, full 0 V to Vcc signal handling, and guaranteed break-before-make switching, ensuring reliable signal switching with minimal distortion and crosstalk. It is ideal for audio switching, modems, and mobile communication applications, housed in a compact WQFN10 package for efficient integration into compact electronic devices.
ONSEMI NS5A4684SMNTBG dual analog switch Specifications:
- On-Resistance (Ron): 0.6 Ω maximum at Vcc = 3.0 V, 0.5 Ω at 4.3 V
- Isolation: -68 dB at 100 kHz
- Maximum Continuous Current: 300 mA per switch
- Supply Voltage Range: 1.65 V to 5.5 V
- Peak Current: 500 mA at 10% duty cycle
- Signal Handling: Full 0-Vcc to Vcc
- Package: WQFN10, 1.4 x 1.8 mm
- Operating Temperature Range: -40°C to +85°C
- Break-Before-Make Guarantee
- Low Power Consumption: <50 nA standby current
- High Input Capacitance: 60 pF (NO, NC ports)
- Off Isolation: -70 dB at 100 kHz
- Flat On-Resistance and Low Distortion (<0.08%)
- Control Pins: Digital inputs for channel switching
Buy the ON Semiconductor Series NS5A4684S Analog Switch: NS5A4684S
Purchase the ON Semiconductor NS5A4684S dual analog switch online today for high-performance signal switching with ultra-low resistance, excellent isolation, and robust current capacity. Designed for audio, communication, and mobile device applications, this device operates from 1.65 V to 5.5 V and ensures reliable operation with full signal handling and break-before-make switching. Available in a compact WQFN10 package, it's ideal for space-constrained and high-demand electronic designs, providing dependable performance and low power consumption for advanced applications.
Get ON Semiconductor NS5A4684S today—built for precision, high isolation, and reliable signal switching in compact electronic applications.
