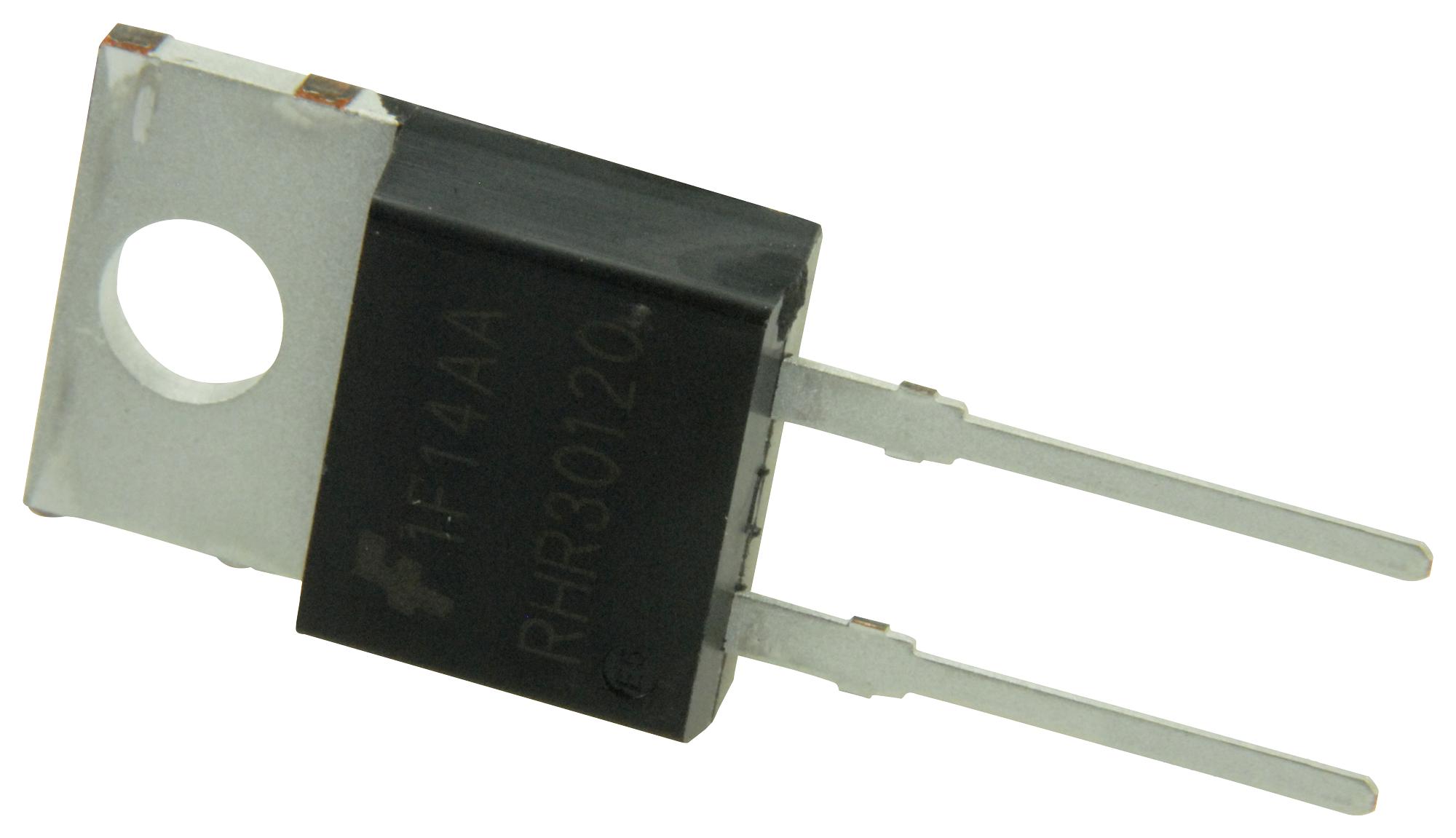

ONSEMI RHRP30120 Hyperfast Power Diode
The RHRP30120 is a 2-pin hyperfast diode rated at 30A and 1200V, featuring soft recovery characteristics. It uses silicon nitride passivation and an ion-implanted epitaxial planar construction, ensuring rapid recovery times comparable to ultrafast diodes. Ideal for switching power supplies and power switching circuits, this diode minimizes electrical noise and power loss by reducing stored charge and soft recovery time. It is suitable for industrial, automation, and power management applications, offering high reliability and efficiency in demanding environments, with RoHS compliance and avalanche energy rated performance.
ONSEMI RHRP30120 Hyperfast Power Diode Specifications:
- Peak Repetitive Reverse Voltage: 1200 V
- Maximum Forward Voltage: 3.2 V @ 30 A, Tc=25°C
- Average Rectified Forward Current: 30 A
- Repetitive Peak Surge Current: 60 A
- Maximum Power Dissipation: 125 W
- Reverse Recovery Time: 85 ns (at 30 A), ta=48 ns, tb=22 ns
- Avalanche Energy: 2.0 mJ
- Operating and Storage Temperature: -55°C to +150°C
- Package: TO-220AC
- RoHS Compliant
- Avalanche Energy Rated
- Half Recovery Time: 85 ns
- Repetitive Peak Surge Current: 60 A
Buy the Buy ON Semiconductor RHRP30120 Part Number 1200V 30A Hyperfast Diode Online
Purchase ON Semiconductor RHRP30120 online to ensure reliable high-speed switching performance. This 30A, 1200V hyperfast diode is perfect for power supplies and industrial automation, offering rapid recovery times, minimal electrical noise, and reduced power loss. Its robust design supports high-reliability applications and increases system efficiency. Take advantage of fast delivery, competitive pricing, and trusted quality by buying this control component online today. Suitable for power switching, clamping, and freewheeling applications with RoHS compliance for environmentally conscious solutions.
Get ON Semiconductor RHRP30120 today—designed for high-speed switching and power efficiency, ideal for industrial and automation power control circuits.
Frequently Asked Questions
Where can I buy ONSEMI RHRP30120?
You can click on the BUY or RFQ button to purchase RHRP30120 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RHRP30120?
You can download the RHRP30120 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RHRP30120?
ONSEMI
