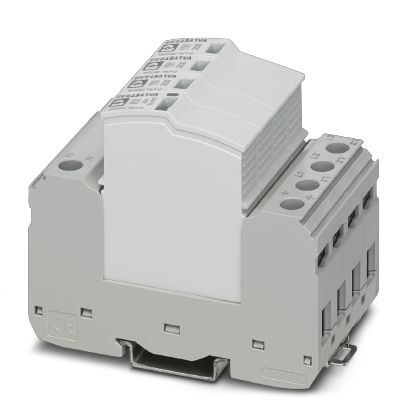

Phoenix Contact 2905340 Surge Arrester
This is a high-performance Type 2/Class II plug-in surge arrester designed for 3-phase power supply networks with separate neutral and earth conductors. It features a compact 12 mm width per position, a high continuous voltage of 350 V AC suitable for fluctuating 230/400 V networks, and low voltage protection level of 1.5 kV. Equipped with optical and mechanical status indicators and a floating remote contact, this arrester provides reliable overvoltage protection with easy plug-in installation, ideal for industrial electrical systems requiring efficient surge suppression.
Phoenix Contact 2905340 Surge Arrester Specifications:
- Dimensions: 12 mm width per position
- Continuous voltage: 350 V AC
- Protection level: 1.5 kV
- Connection method: Screw connection
- Conductor cross section flexible: 2.5 mm² to 16 mm²
- Conductor cross section solid: 2.5 mm² to 25 mm²
- UL conductors: AWG 14 to 2 (solid)
- Tightening torque: 40 Ib-in. to 50 Ib-in.
- Standards: IEC 61643-11 2011
- Shock resistance: 30g, half sinus, 11 ms
- Vibration resistance: 5g, 10–500 Hz
- Permissible altitude: < 2000 m
- Ambient humidity: 5% to 95%
- Approvals: UL Recognized, cUL, KEMA-KEUR, IEC CB scheme
- Environmental Compliance: China RoHS, 50 years use period
Buy the Buy Phoenix Contact Surge Arrester Part Number 2905340 Online
Secure your electrical systems with the Phoenix Contact surge arrester designed for 3-phase networks, offering high continuous voltage capacity and low leakage current. Its compact 12 mm width, robust surge protection level of 1.5 kV, and remote status indication make it ideal for industrial environments facing voltage fluctuations. Easy plug-in design simplifies installation and maintenance. Trust this high-performance device to protect sensitive equipment from surges, ensuring system stability and compliance with international standards. Buy online now for quick, reliable surge suppression in your power distribution setup.
Order your Phoenix Contact surge arrester Part Number 2905340 today and ensure reliable overvoltage protection with easy plug-in installation for industrial systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 2905340?
You can click on the BUY or RFQ button to purchase 2905340 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2905340?
You can download the 2905340 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2905340?
Phoenix Contact
