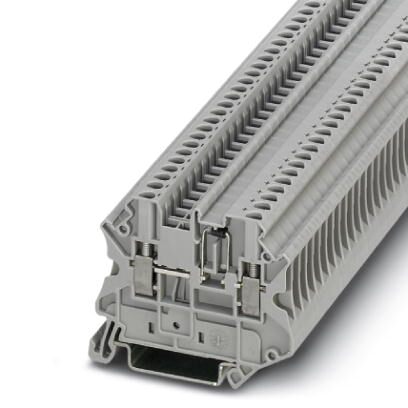

Phoenix Contact 3064140 Terminal Block with Diode
The PHOENIX CONTACT UT 2,5-MTD-DIO/R-L component terminal block is designed for performing a wide range of switching tasks. It incorporates an integrated diode, allowing for controlled current flow and providing additional functionality in circuit designs. This terminal block is characterized by its robust construction, reliable screw connection, and compatibility with standard DIN rails (NS 35/7.5 and NS 35/15). It is suitable for applications requiring a combination of power distribution and signal conditioning, commonly found in industrial automation, power supplies, and control systems. The block's compact size and ease of integration make it a versatile solution for various electrical engineering projects.
Phoenix Contact 3064140 Terminal Block with Diode Specifications:
- Note: Max current determined by diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Nominal current IN: 0.5 A
- Maximum load current: 0.5 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- Length: 57.8 mm
- Height NS 35/7,5: 47.5 mm
- Height NS 35/15: 55 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1.5 mm²
- Connection method: Screw connection
- Stripping length: 9 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Connection in acc. with standard: CSA
- China RoHS: Environmentally Friendly Use Period = 50
