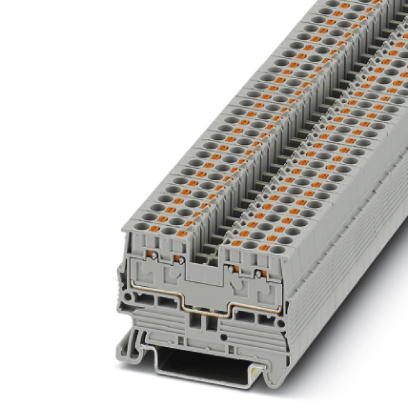

Phoenix Contact 3211027 PT 2.5 Quattro Feed-through
The PHOENIX CONTACT PT 2,5/S-QUATTRO CUS feed-through terminal block offers a compact design and front connection, enabling wiring in confined spaces. It utilizes a push-in connection for easy and tool-free wiring of conductors with ferrules or solid conductors. This terminal block is ideal for various industrial applications including machine building, plant engineering, and the process industry. It provides a reliable connection with a nominal voltage of 500V and a nominal current of 17.5A, ensuring efficient and safe power distribution within your system.
Phoenix Contact 3211027 PT 2.5 Quattro Feed-through Specifications:
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: gray
- Mounting type: NS 35/7,5, NS 35/15
- Insulating material: PA
- Flammability rating: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Maximum power dissipation: 0.77 W
- Maximum load current: 22 A
- Nominal current: 17.5 A
- Nominal voltage: 500 V
- Open side panel: Yes
- Stripping length: 10 mm
- Connection method: Push-in connection
- Conductor cross section solid min: 0.14 mm²
- Conductor cross section solid max: 2.5 mm²
- Conductor cross section AWG min: 26
- Conductor cross section AWG max: 12
- Short-time current: 0.3 kA
Buy the 3211027 PHOENIX CONTACT PT 2.5 Quattro Feed-through | myMectronic
Purchase the PHOENIX CONTACT 3211027 PT 2,5/S-QUATTRO CUS feed-through terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3211027?
You can click on the BUY or RFQ button to purchase 3211027 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3211027?
You can download the 3211027 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3211027?
Phoenix Contact
