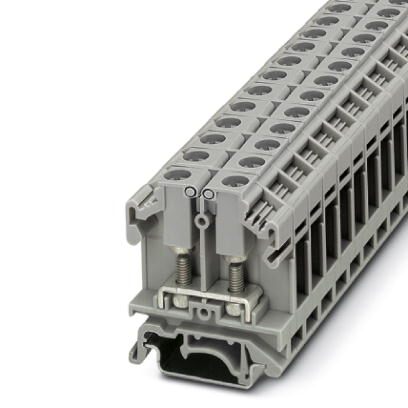

Phoenix Contact OTTA6PP Feed-through Terminal Block
The Phoenix Contact OTTA 6-P/P is a versatile feed-through terminal block engineered for robust and reliable electrical connections. Designed with a bolt connection mechanism and incorporating test socket screws for convenient testing, this terminal block is ideal for a wide range of industrial applications. It supports conductor cross-sections ranging from 0.1 to 6 mm², ensuring compatibility with various wire gauges. The block's robust construction and high-quality materials, including PA insulation, contribute to its durability and performance in demanding environments. Its compliance with standards like IEC 60947-7-1 and DIN 46234 further reinforces its suitability for critical applications.
Phoenix Contact OTTA6PP Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: DIN 46 234
- Nominal current IN: 41 A
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal voltage UN: 800 V (the nominal voltage applies to insulated cable lugs)
- Open side panel: Yes
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Back of the hand protection: guaranteed
- Finger protection: guaranteed
- Result of surge voltage test: Test passed
- Surge voltage test setpoint: 9.8 kV
- Result of power-frequency withstand voltage test: Test passed
- Power frequency withstand voltage setpoint: 2 kV
- Result of the test for mechanical stability of terminal points: Test passed
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 32/NS 35
- Setpoint: 5 N
- Result of voltage-drop test: Test passed
- Requirements, voltage drop: ≤ 3.2 mV
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 6 mm²
- Short-time current: 0.72 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Length: 43.5 mm
- Width: 11 mm
- Height NS 35/7,5: 52 mm
- Height NS 35/15: 59.5 mm
- Height NS 32: 57 mm
- Conductor cross section solid min.: 0.1 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.1 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- Connection method: Bolt connection
- Min. cross section: 0.1 mm²
- Max. cross section: 6 mm²
- Hole diameter: 4.3 mm
- Bolt diameter: 4 mm
- eCl@ss 4.0: 27141120
- eCl@ss 4.1: 27141120
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
