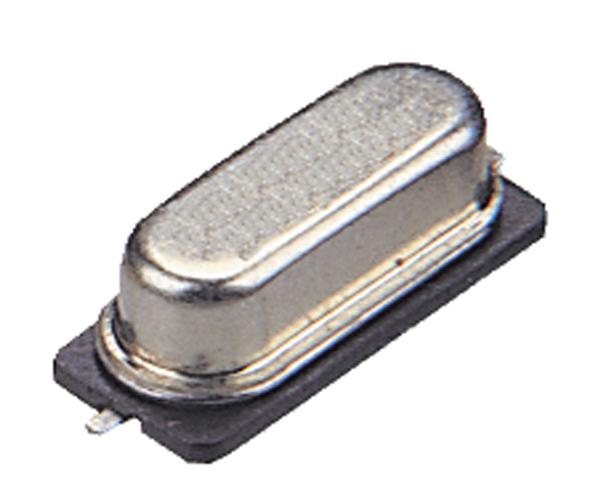

RALTRON AS2000020SMDTR Surface Mount Crystal
This surface mount crystal is ideal for clock and timing applications, offering a wide frequency range from 3.20 MHz to 70.00 MHz, with low frequency tolerance and stability over extended temperature ranges. Its compact, low-profile design ensures reliable performance in space-constrained environments, supported by specified load capacitance, ESR characteristics, and reflow soldering profiles suitable for high-precision electronics. Suitable for CPUs, microcontrollers, and other synchronized digital circuits, it provides stable, accurate oscillation essential for reliable electronic operation.
RALTRON AS2000020SMDTR Surface Mount Crystal Specifications:
- Frequency Range: 3.20 MHz to 70.00 MHz
- Fundamental Mode: 3.20 MHz to 40.320 MHz
- Third Overtone Mode: 24.576 MHz to 70.00 MHz
- Frequency Tolerance at 25°C: +50 PPM Max
- Frequency Stability over Temperature: -20°C to +70°C standard, -40°C to +85°C extended
- Aging: +5 PPM per year maximum
- Storage Temperature Range: -55°C to +125°C
- Load Capacitance: 10 pF to 32 pF or series
- ESR Max: 180Ω at 3.579545 MHz, 60Ω at 8.064 MHz, 50Ω at 14.7456 MHz, etc.
- Drive Level: 0.1 mW typical
- Reflow Conditions: 260°C for 10 seconds maximum
- Physical Dimensions: Max length 13.50 mm, width 9.00 mm, height 3.80 mm
- Holder Type: SMD, with custom configurations available
- Temperature Range: -40°C to +85°C extended
- Package: Tape and reel, 1000 pieces per reel
Buy the Ralitron HC-49S – Reliable Crystal for Industrial Applications
Purchase the Raltron HC-49S low profile surface mount crystal today to ensure your electronic projects benefit from precise, stable timing signals. Designed for clock and timing applications in industrial devices, it offers wide frequency options, extended temperature stability, and low ESR characteristics. Its compact, robust construction facilitates easy integration in space-constrained circuits. Ideal for CPUs, microcontrollers, and digital systems that require reliable oscillation, this crystal ensures your projects run accurately and efficiently in both standard and harsh operating conditions.
Order your Raltron Series AS-49SMD Crystal today and ensure your electronic devices operate with precise timing and outstanding reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy RALTRON AS2000020SMDTR?
You can click on the BUY or RFQ button to purchase AS2000020SMDTR from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part AS2000020SMDTR?
You can download the AS2000020SMDTR datasheet or visit the RALTRON website for support.
Who is the manufacturer of AS2000020SMDTR?
RALTRON
