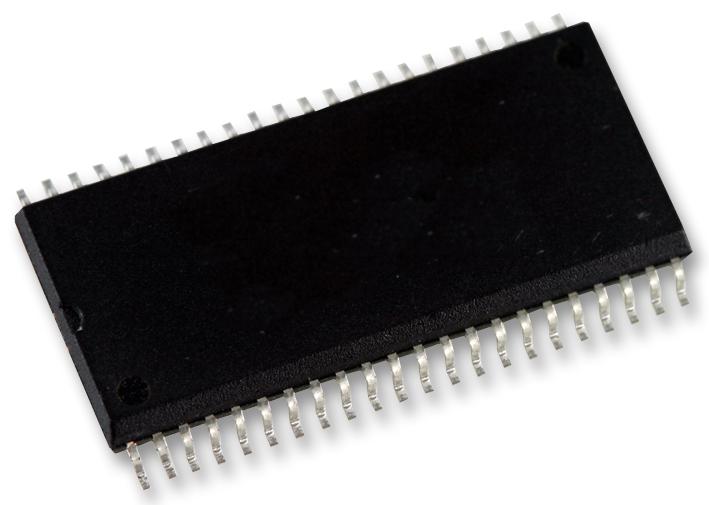

RENESAS 71V416L10PHG High-speed CMOS Static RAM
The IDT71V416 high-speed CMOS static RAM provides 4 Meg (256K x 16-bit) organized memory, fabricated with high-reliability CMOS technology, ideal for high-speed memory applications. It features a single power supply of 3.3V, with access times as fast as 10ns, and includes one chip select and one output enable pin for flexible control. Packaged in SOJ, TSOP, and BGA options, it offers low power consumption, LVTTL-compatible bidirectional data inputs and outputs, and is suitable for both commercial and industrial temperature ranges. Designed for cost-effective, static, asynchronous operation without clocks or refresh cycles.
RENESAS 71V416L10PHG High-speed CMOS Static RAM Specifications:
- Memory Organization: 256K x 16 bits
- Supply Voltage: 3.3V
- Access Time: as fast as 10ns for commercial, 12ns and 15ns options available
- Packages: 44-pin SOJ, 44-pin TSOP Type II, 48-ball BGA
- Temperature Ranges: Commercial (0°C to +70°C), Industrial (-40°C to +85°C)
- Bidirectional Data Inputs/Outputs: LVTTL-compatible
- Power Consumption: Low power with chip deselect
- Pin Configuration: JEDEC Center Power / GND pinout
- Control Pins: Chip Select, Output Enable, Upper and Lower Byte Enable
- Operation: Fully static asynchronous, no clocks or refresh needed
- Design Features: Advanced high-speed CMOS technology for reliable performance
Buy the IDT Series RAM: 4 Meg CMOS Static RAM 71V416L10PHG
Order the IDT71V416 high-speed CMOS static RAM online today to ensure your projects benefit from fast access times, low power consumption, and versatile packaging options. This 4 Meg capacity memory module operates at 3.3V, with access times as quick as 10ns, making it perfect for demanding high-speed applications in industrial and commercial environments. Available in SOJ, TSOP, and BGA packages, it offers reliable, static, asynchronous operation without the need for clocks or refresh cycles. Purchase now for dependable high-performance memory solutions that meet your design needs.
Buy IDT CMOS Static RAM 71V416L10PHG now and experience unmatched reliability and high-speed performance for your industrial and commercial projects.
Frequently Asked Questions
Where can I buy RENESAS 71V416L10PHG?
You can click on the BUY or RFQ button to purchase 71V416L10PHG from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 71V416L10PHG?
You can download the 71V416L10PHG datasheet or visit the RENESAS website for support.
Who is the manufacturer of 71V416L10PHG?
RENESAS
