RENESAS 9ZXL1950DKILF Differential Buffer
The 9ZXL1950DKILF is a high-performance, second-generation differential buffer designed for PCIe Gen1–4 UPI applications. These pin-compatible devices feature enhanced phase jitter performance and low drift with fixed external feedback, ideal for servers, storage, networking, and SSDs. They incorporate LP-HCSL outputs, SMBus control, spread spectrum EMI reduction, small 10x10 mm packages, and selectable PLL bandwidths. With specifications covering cycle-to-cycle jitter, output skew, phase jitter, and robust power ratings, they ensure reliable high-speed clock distribution for demanding data center and enterprise systems.
RENESAS 9ZXL1950DKILF Differential Buffer Specifications:
- Package: 10 x 10 mm, 72-VFQFPN, RoHS compliant, Pb-free
- Supply Voltage: Vppx up to 3.9V, Vppio at 1.05V typical
- Jitter: Cycle-to-cycle < 50ps, output skew < 50ps, Phase jitter for PCIe Gen4 rms 53fs
- Power Consumption: ~85mA at 100MHz for Vppx pins, ~169mA for power supply
- Input/Output: Differential LP-HCSL, 19 output pairs with optional 850 Zout
- Temperature Range: -40°C to +85°C
- SMBus Interface: 7-bit addresses, control bits for differential outputs, PLL configuration
- Clock Inputs: DIF_IN, DIF_IN#, support for spread spectrum, and various PLL bandwidth modes
- Absolute Max Ratings: supply voltage 3.9V, junction temp 125°C, ESD protection 2000V
- Electrical Characteristics: SMBus voltage levels, slew rate, output voltage, and skew parameters
- Features: Spread spectrum, hardware/SMBus control, selectable PLL bandwidth, delay matching, small form factor
- Reliability: Designed for high-speed clocking in enterprise, server, and storage systems

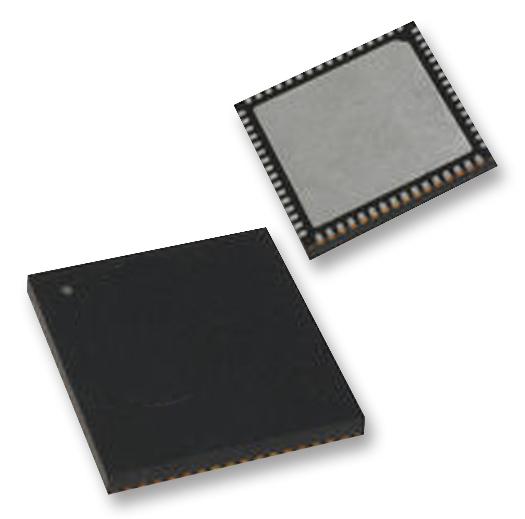

Buy the IDT 9ZXL1950DKILF – Reliable Differential Buffer for Industrial Applications
Upgrade your high-speed data systems with the IDT 9ZXL1950DKILF differential buffer, offering low jitter, spread spectrum EMI reduction, SMBus control, and a compact 10x10 mm package. Designed for PCIe Gen1–4 and UPI applications, it ensures dependable clock distribution in demanding industrial, server, and storage environments. Its enhanced phase jitter and low drift capabilities enhance performance stability, making it ideal for data centers and enterprise systems. Purchase online now for reliable high-performance clock management in your critical applications.
Order your IDT 9ZXL1950DKILF high-performance differential buffer today and enhance your server and storage system reliability with cutting-edge jitter performance.
Frequently Asked Questions
Where can I buy RENESAS 9ZXL1950DKILF?
You can click on the BUY or RFQ button to purchase 9ZXL1950DKILF from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 9ZXL1950DKILF?
You can download the 9ZXL1950DKILF datasheet or visit the RENESAS website for support.
Who is the manufacturer of 9ZXL1950DKILF?
RENESAS
