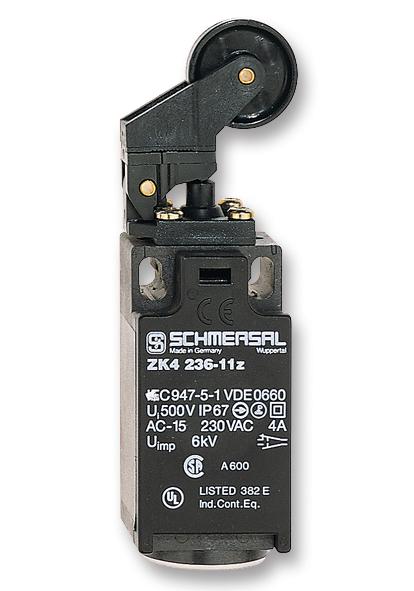

Schmersal TK423611ZM20 Safety Position Switch
The safety position switch features a thermoplastic enclosure compliant with DIN EN standards, suitable for safety functions with a rated impulse withstand voltage of 6kV. Designed with a roller lever actuator and optional repositionable heads, it supports a wide temperature range of -30°C to +80°C and has an IP67 rating for robust environmental protection. This switch offers up to 20 million operations and includes a connector interface, suitable for use in safety circuits and automation systems, with a compact size of 30mm x 58.5mm x 30mm for versatile mounting.
Schmersal TK423611ZM20 Safety Position Switch Specifications:
- Enclosure Material: Thermoplastic, self-extinguishing
- Actuator Type: Roller lever
- Dimensions: 30mm x 58.5mm x 30mm
- Cable Entry: M20x1.5 or NPT 1/2"
- Environmental Temperature Range: -30°C to +80°C
- Protection Class: IP67
- Contacts: Normally open (NO), Opener (NC)
- Contact Material: Gold-plated with 0.3µm coating
- Rated Impulse Withstand Voltage: 6kV
- Rated Insulation Voltage: 50V
- Switching Capacity: AC-15: 4A at 230V, DC-13: 1A at 24V
- Electrical Life: Up to 20 million operations
- Mechanical Life: 20 million operations
- Switching Frequency: Max. 5000 cycles/hour
- Operating Force: 6N
- Switchover Time: 16ms
- Ambient Temperature: -30°C to +80°C
- Weight: Approx. 65g
- Certification: EN ISO 13849-1, conforming to safety standards
Buy the Buy Schmersal Safety Position Switch Part Number TK423611ZM20 Online
Order the Schmersal TK423611ZM20 safety position switch online now for industrial safety and automation systems. This rugged switch features a self-extinguishing thermoplastic enclosure with a roller lever actuator, IP67 rating, and a compact size, making it ideal for various safety applications. It supports 20 million operations, with options for NPT or M20 connectors, suitable for hazardous environments. Ensure safety compliance and long-term reliability with this high-performance switch—available for quick delivery and competitive pricing online.
Get Schmersal TK423611ZM20 safety switch today—engineered for high durability and reliable safety performance in industrial applications.
Frequently Asked Questions
Where can I buy Schmersal TK423611ZM20?
You can click on the BUY or RFQ button to purchase TK423611ZM20 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part TK423611ZM20?
You can download the TK423611ZM20 datasheet or visit the Schmersal website for support.
Who is the manufacturer of TK423611ZM20?
Schmersal
