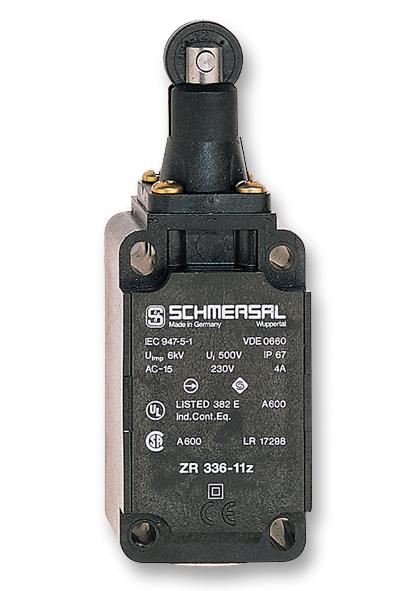

Schmersal ZR33611Z Position Switch
The ZR 336-112 position switch features a thermoplastic enclosure with a roller plunger, designed for safety and automation applications. It complies with EN 50041 standards and offers snap action with constant contact pressure up to the switching point. The device is double-insulated, resistant to oil and petroleum spirit, and suitable for various safety functions. It includes repositionable actuators, a M20x 1.5 cable entry, and mechanical lifespans of 30 million operations, with a switching capacity of 10A at 500V, making it ideal for industrial safety and control systems.
Schmersal ZR33611Z Position Switch Specifications:
- Flammability: UL 94V-0
- Material of the housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Contacts: Silver
- Switching principle: Snap action with constant contact pressure
- Mechanical life: 30,000,000 operations
- Switching frequency: Max. 5000 /h
- Actuating force: Min. 12N
- Protection class: IP67
- Ambient temperature: -30°C to +80°C
- Rated impulse withstand voltage Uimp: 6kV
- Rated insulation voltage Ui: 50 V
- Rated current: AC-15: 50/4 A, DC-13: 24V/1A
- Dimensions: Width 40.5 mm, Height 116.5 mm, Length 38 mm
- Cable entry: M20x 1.5, optional NPT 1/2, or M12 connectors
- Housing: Norm construction design with screw connection
Buy the Schmersal Series Position Switch: ZR 336-112
Order the Schmersal ZR 336-112 position switch online today to ensure reliable, safety-rated operation in your automation or safety systems. This robust switch features a thermoplastic enclosure resistant to oils and petroleum spirits, with a roller plunger actuator that can be repositioned for flexible operation. Its high mechanical lifespan of 30 million operations guarantees long-term durability, and the IP67 protection rating ensures excellent environmental resistance. Easy to install with a M20x 1.5 cable entry or optional connectors, this switch is perfect for safety-critical industrial applications. Shop now for fast delivery and peace of mind.
Buy Schmersal ZR 336-112 position switch now and experience unmatched reliability and high durability for your industrial safety and automation systems.
Frequently Asked Questions
Where can I buy Schmersal ZR33611Z?
You can click on the BUY or RFQ button to purchase ZR33611Z from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part ZR33611Z?
You can download the ZR33611Z datasheet or visit the Schmersal website for support.
Who is the manufacturer of ZR33611Z?
Schmersal
