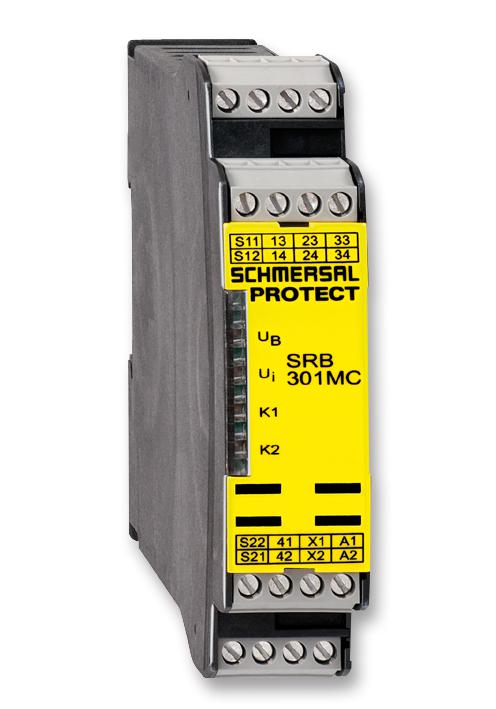

Schmersal SRB301MC24V Safety Monitoring Module
The SRB 301MC-24V safety monitor module is designed for emergency stop applications, monitoring electromechanical switchgear and guard doors with magnetic sensors. It features three safety contacts, signaling output, and supports potential-free outputs for signals from emergency stop devices, position switches, and solenoid interlocks. Compliant with EN ISO 13849-1, IEC 61508, and EN 60947-5-1 standards, it offers reliable operation with a mechanical life of 10 million cycles and an electrical lifetime suited for industrial safety systems. Its robust design includes visual LED indicators for status monitoring, DIN rail mounting, and universal wiring options, making it ideal for safety-critical automation systems.
Schmersal SRB301MC24V Safety Monitoring Module Specifications:
- Control category: pc
- Standards: EN ISO 13849-1, IEC 61508, EN 60947-5-1
- Supply voltage: 24 VDC (-15%/+20%), 24 VAC (-15%/+10%)
- Contact resistance: max. 100 mΩ
- Safety contacts: 3, auxiliary contacts: 1
- Switching capacity: max. 250 VAC, 8 A ohmic
- Mechanical life: 10,000,000 operations
- Electrical lifetime: up to 36,500 switching cycles/year
- Physical dimensions: Width 22.5 mm, Height 400 mm, Depth 121 mm
- Ambient temperature: -25°C to +60°C
- Protection classes: IP40, IP20, IP54
- Connection: Screw terminal with torque 0.6 Nm
- Vibration resistance: 10 g/11 ms, frequency 5-55 Hz
- Shock resistance: 10 g/11 ms
- EMC rating: Conforming to EMC Directive
- Ambient conditions: Resistant to climatic stress, suitable for industrial environments
Buy the Schmersal SRB 301MC-24V – Reliable Safety Monitoring for Industrial Applications
Purchase the Schmersal SRB 301MC-24V safety monitoring module online today. Designed for emergency stop and guard door monitoring, it ensures reliable safety operations with three safety contacts and signaling output. The module complies with international safety standards such as EN ISO 13849-1, IEC 61508, and EN 60947-5-1, offering long-lasting performance with up to 10 million mechanical cycles. Easy to mount on DIN rails and compatible with various safety sensors, it is essential for maintaining safety in industrial automation systems. Order now for quick, secure delivery!
Get Schmersal SRB 301MC-24V today—built for precision, durability, and safety-critical monitoring in industrial environments.
Frequently Asked Questions
Where can I buy Schmersal SRB301MC24V?
You can click on the BUY or RFQ button to purchase SRB301MC24V from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part SRB301MC24V?
You can download the SRB301MC24V datasheet or visit the Schmersal website for support.
Who is the manufacturer of SRB301MC24V?
Schmersal
