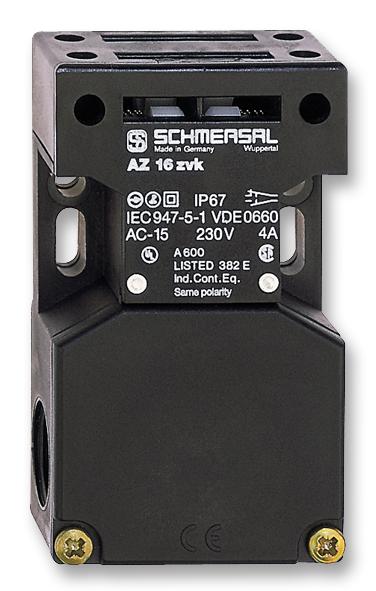

Schmersal AZ1612ZVRKM20 Safety Switch
The safety switch AZ 16 with separate actuator features a thermoplastic enclosure, double-insulated design, large wiring compartment, and multiple coding for enhanced safety. It is compliant with standards EN ISO 13849-1 and EN 60947-5-1, with a mechanical life of 20 million operations. The switch includes M16x1.5 cable entries, a protected IP67 rating, and a compact size of 52mm x 90mm x 30mm. Suitable for applications requiring high contact reliability, adjustment options, and long-term durability.
Schmersal AZ1612ZVRKM20 Safety Switch Specifications:
- Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Contacts Material: Silver
- Protection Class: IP67 to IEC/EN 60529
- Dimensions: 52mm width, 90mm height, 30mm length
- Cable Entries: M16x1.5
- Mechanical Life: 20,000,000 operations
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage Uimp: 6 kV
- Rated Fuse Rating: 10A
- Switching Principle: Creep circuit element
- Ambient Temperature Range: -30°C to +80°C
- Max. Actuating Speed: 0.2 m/s
- Protection Level: IP67
- Standards: EN ISO 13849-1, EN 60947-5-1, BG-GS-ET-15
- Approval: CCC, GOST, BG-test certificate, UL
- Additional features include M20 cable entries, optional LED indicator, and various actuator mounting options.
Buy the Buy Schmersal Safety Switch Part Number AZ1612ZVRK Online
Order the Schmersal AZ 16-12ZVRK safety switch online today for reliable safety control in industrial environments. Featuring a robust thermoplastic enclosure, high contact reliability, and IP67 protection, it is suitable for demanding applications. Its large wiring compartment simplifies installation, while the multiple coding options enhance safety. Ensuring a long service life of over 20 million operations, this switch adheres to the relevant standards, offering peace of mind and operational efficiency. Secure your safety system by purchasing online now for quick delivery and technical support.
Buy Schmersal AZ 16-12ZVRK now and experience unmatched reliability and performance in safety circuit switching with high durability and IP67 protection.
Frequently Asked Questions
Where can I buy Schmersal AZ1612ZVRKM20?
You can click on the BUY or RFQ button to purchase AZ1612ZVRKM20 from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AZ1612ZVRKM20?
You can download the AZ1612ZVRKM20 datasheet or visit the Schmersal website for support.
Who is the manufacturer of AZ1612ZVRKM20?
Schmersal
