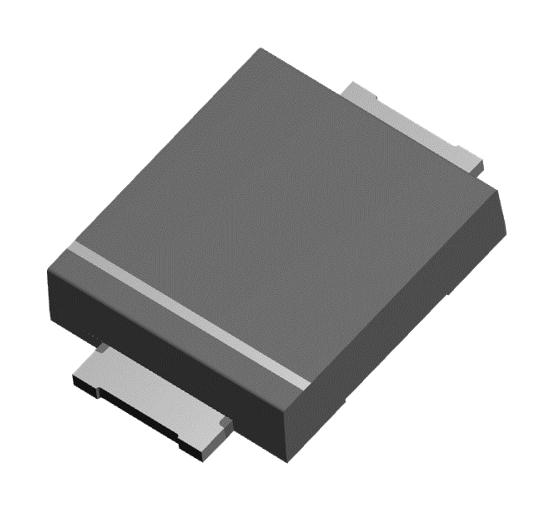

STMICROELECTRONICS SMB15F20A Surge Protection Diode
The SMB15F20A series is a high-power TVS diode designed for protecting sensitive electronic circuits against surges and transient voltages. It features a flat, thin package with a thickness of just 1 mm and supports stand-off voltages from 5 V to 64 V. With peak pulse power dissipation of 1500 W (10/1000 ps) and high junction temperature stability up to 175°C, this unidirectional device offers low leakage current, ensuring reliable long-term operation in industrial and telecommunications applications. Compliant with UL94 VO and enhanced safety standards, it is suitable for high-demand surge protection environments.
STMICROELECTRONICS SMB15F20A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps) and 10 kW (8/20 us)
- Stand-off voltage range: 5 V to 64 V
- Peak pulse power dissipation: 1500 W (10/1000 ps)
- Operating junction temperature: -55°C to +175°C
- Maximum lead soldering temperature: 260°C for 10 s
- Unidirectional type, low leakage current: 0.2 μA at 25°C
- Material: Matte tin plated leads, planar technology
- Mechanical package: SMB Flat, outline compliant with JEDEC standards
- Compliance: UL94 VO, IEC 61000-4-4 level 4, J-STD-020 MSL level 1
Buy the STMicroelectronics SMB15F20A – Reliable Surge Protection for Industrial Applications
Secure your sensitive circuits today with the high-power SMB15F20A surge protection diode. This unidirectional device offers 1500 W peak pulse power, low leakage current, and a slim 1 mm flat package. Its wide stand-off voltage range allows flexible deployment across various voltage levels. Designed for industrial, telecom, and electronic applications, it ensures long-term stability and safety by meeting stringent UL94 VO and IEC standards. Easy to install, reliable, and efficient, it’s the ideal choice for surge suppression needs.
Buy STMicroelectronics SMB15F20A now and experience unmatched reliability and high power surge protection for industrial and electronic circuits.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F20A?
You can click on the BUY or RFQ button to purchase SMB15F20A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F20A?
You can download the SMB15F20A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F20A?
STMICROELECTRONICS
