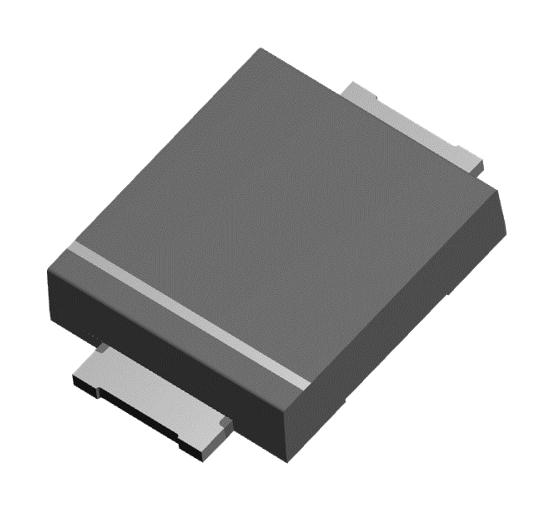

STMICROELECTRONICS SMB15F36A Surge Protection Diode
The SMB15F36A is a high-power TVS diode designed for circuit protection against voltage surges. Featuring a flat, thin package of 1 mm, it offers peak pulse power of 1500 W (10/1000 ps) with a stand-off voltage range from 36 V. The unidirectional device ensures low leakage current of 0.2 UA at 25°C, withstanding operating junction temperatures up to 175°C. Its robust construction complies with standards like UL94 VO and MIL-STD-750, providing reliable surge handling for high-end electronic circuits requiring high junction temperature endurance and low leakage.
STMICROELECTRONICS SMB15F36A Surge Protection Diode Specifications:
- Peak pulse power: 1500 W (10/1000 ps)
- Stand-off voltage range: from 36 V to 64 V
- Peak pulse power at Tj max.: 1100 W
- Operating junction temperature: -55°C to +175°C
- Peak pulse current: 37.8 A at 53.3 V clamp
- Leakage current: 0.2 UA at 25°C
- Filament package: SMB Flat, 1 mm thick
- Lead finishing: matte tin plating
- Complies with UL94 VO, J-STD-020 MSL level 1
- Soldering Temperature: max 260°C for 10 seconds
- Package outline: JEDEC registered SMB Flat, footprint compatible
Buy the Buy STMicroelectronics SMB15F36A Part Number SMB15F36A Online
Secure your electronic circuits with the high-performance surge protection diode. The SMB15F36A provides 1500 W peak pulse power, low leakage current, and robust junction temperature handling up to 175°C. Packaged in a thin, flat SMB package, it ensures excellent thermal performance and reliable surge absorption in high-end applications. Easy to solder with standard reflow profiles, this device is ideal for protecting sensitive components from voltage transients, ensuring durability and stability in demanding environments.
Buy STMicroelectronics SMB15F36A now and experience unmatched reliability and high surge protection performance.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS SMB15F36A?
You can click on the BUY or RFQ button to purchase SMB15F36A from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part SMB15F36A?
You can download the SMB15F36A datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of SMB15F36A?
STMICROELECTRONICS
