STMICROELECTRONICS VBG08HE Ignition Driver IC
VBG08H is a single channel driver with an integrated IGBT power stage, assembled using Chip On Chip hybrid technology in the OctaPAK package. It is designed for automotive applications, specifically for driving large inductive loads such as electronic ignition systems. The device features a coil current limiter, thermal protection with Soft Shut Down triggered by TSD, and built-in diagnostics. Its protections include thermal, overvoltage, and input fault management, ensuring reliable operation in harsh environments. The device's architecture provides precise control with features like slow turn-on, enable input, and current flag output, making it suitable for engine control units and other demanding automotive systems.
STMICROELECTRONICS VBG08HE Ignition Driver IC Specifications:
- Gate Voltage: 8V (Nominal) with Vg range 6-40V
- Collector-Emitter Saturation Voltage: 15V at 4A
- Maximum Collector Voltage: 400V
- Standby Supply Current: 6mA at Vg=13.5V
- Operational Temperature Range: -40°C to 150°C
- Thermal Resistance Junction-Case: 0.55°C/W
- Power Dissipation and Package: OctaPAK dimensions with footprint of 6.4mm x 7mm
- Coil Current Range: 0-8A, Coil Limit: 10.5A at Vg=6V
- Thermal Shutdown Temperature: 150°C with hysteresis 17-33°C
- Input Voltage Thresholds: Vinp_H = 3V, Vinp_L = 15V, Hysteresis 0.2V
- Electrical transient immunity as per ISO 7637-2 standards
- Clock frequency: 15 MHz, Timing, and Filtering typical values provided

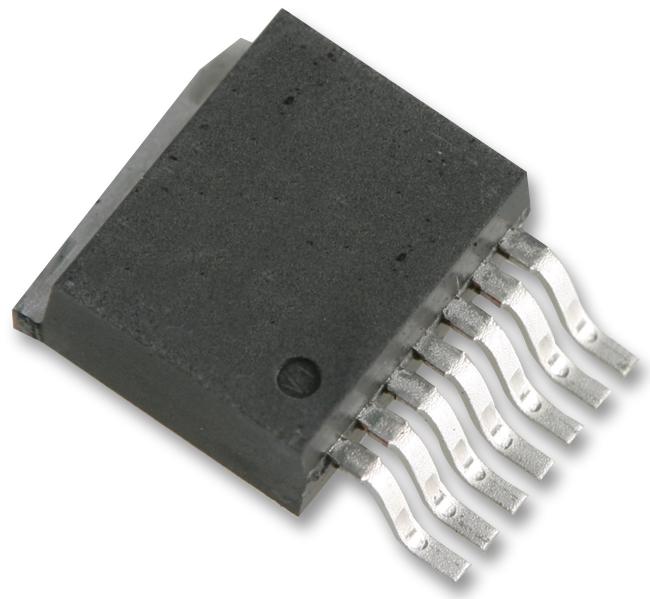

Buy the STMicroelectronics VBG08H – Reliable Ignition Driver for Industrial Applications
Discover the high-reliability STMicroelectronics ignition driver IC designed for automotive and industrial applications. Featuring integrated IGBT power stage, coil current limiter, thermal protections, and multiple fault diagnostics, it ensures safe operation in demanding environments. Easy to integrate with soft turn-on, enable control, and current flag output, this device meets stringent automotive standards. Purchase online today to enhance your engine control systems, reduce downtime, and improve performance with a proven, robust solution suitable for large inductive loads and harsh automotive conditions.
Order your STMicroelectronics VBG08H ignition driver IC today and ensure robust performance for automotive and industrial high-power inductive load applications.
Frequently Asked Questions
Where can I buy STMICROELECTRONICS VBG08HE?
You can click on the BUY or RFQ button to purchase VBG08HE from an authorized STMICROELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part VBG08HE?
You can download the VBG08HE datasheet or visit the STMICROELECTRONICS website for support.
Who is the manufacturer of VBG08HE?
STMICROELECTRONICS
