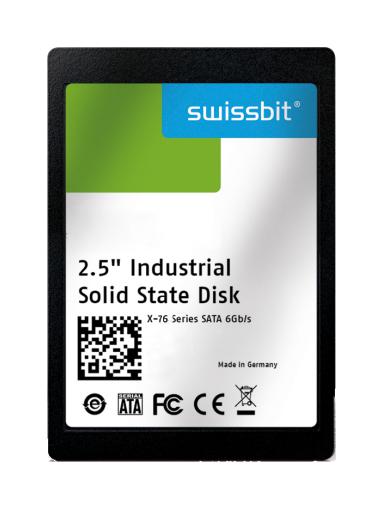

SWISSBIT SFSA010GS2AK1TOI5S22PSTD Industrial SATA SSD
The Swissbit X-76 Series is an industrial-grade 2.5-inch SATA SSD designed for robust embedded and industrial applications. It offers capacities from 10 GB up to 320 GB, featuring SATA Gen3 (6 Gbit/s) interface compatibility and support for ATA/ATAPI-8 and ACS-2 command sets. Equipped with Triple-Level Cell (TLC) 3D NAND flash in pSLC mode, it delivers high performance with sequential read speeds up to 560 MB/s and write speeds up to 480 MB/s, along with reliable S.M.A.R.T. monitoring, power fail protection, AES256 encryption, and in-field firmware updates. Its rugged construction ensures operation in temperatures from -40°C to 85°C and compliance with industry standards, making it suitable for demanding industrial environments.
SWISSBIT SFSA010GS2AK1TOI5S22PSTD Industrial SATA SSD Specifications:
- Form Factor: 2.5 inch SATA Solid State Drive (70 mm x 100 mm x 7 mm)
- Capacities: 10 GB, 20 GB, 40 GB, 80 GB, 160 GB, 320 GB
- Interface: SATA 6 Gbit/s (Gen3) backward compatible with Gen2 and Gen1
- Sequential Read: Up to 560 MB/s, Write: Up to 480 MB/s
- Random Read (4K): Up to 74,000 IOPS, Write: Up to 84,900 IOPS
- Operating Temperature: -40°C to 85°C, Storage: -40°C to 85°C
- Power Consumption: Read Active 2.8 W, Write Active 2.9 W, Idle: 550 mW
- Data Retention: 10 years at start of life, 1 year at end of life
- Endurance: Over 10,520 TBW (typical for 320 GB capacity), DWPD 5.91
- Compliance: SATA Gen3, ATA/ATAPI-8, ACS-2, RoHS, REACh, WEEE
- Features: Power Fail Protection, AES256 Encryption, TCG Opal (optional), In-field Firmware Updates
Buy the Buy Swissbit SSD Part Number SFSA010GS2AK1TOI5S22PSTD Online
Purchase the Swissbit industrial-grade SATA SSD SFSA010GS2AK1TOI5S22PSTD online today. With capacities up to 10 GB, this rugged SSD supports SATA Gen3 interface speeds, ensuring fast data transfer with sequential reads up to 560 MB/s and writes up to 480 MB/s. Designed for demanding industrial environments, it operates reliably from -40°C to 85°C, offers power fail protection, AES-256 encryption, and supports in-field firmware updates. Secure, durable, and easy to integrate—order now for reliable embedded storage.
Buy Swissbit SFSA010GS2AK1TOI5S22PSTD now and experience unmatched reliability, high performance, and robust industrial-grade storage solutions.
Frequently Asked Questions
Where can I buy SWISSBIT SFSA010GS2AK1TOI5S22PSTD?
You can click on the BUY or RFQ button to purchase SFSA010GS2AK1TOI5S22PSTD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFSA010GS2AK1TOI5S22PSTD?
You can download the SFSA010GS2AK1TOI5S22PSTD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFSA010GS2AK1TOI5S22PSTD?
SWISSBIT
