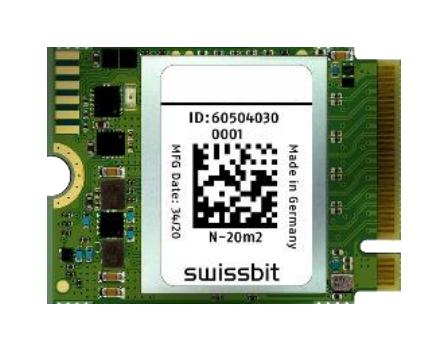

SWISSBIT SFPC030GM1EC1TOI5EA16STD Industrial NVMe SSD

The Swissbit N-20m2 SSD utilizes NVMe technology and PCIe Gen3 x2, x4 interface standards, supporting capacities from 15 GB to 480 GB. It features robust 3D NAND flash, high endurance, and optimized firmware for data integrity, including wear leveling, error correction, and firmware updates. Designed for industrial and embedded applications, it operates within -40°C to 85°C, provides impressive read/write speeds up to 1,773 MB/s sequentially, and ensures reliability with a MTBF of over 2 million hours. It complies with EMC, RoHS, REACH, and WEEE standards, supporting high-speed data transfer and long-term durability in harsh environments.

Swissbit SFPC030GM1EC1TOI5EA16STD – Reliable NVMe PCIe SSD for Industrial Applications
View SFPC030GM1EC1TOI5EA16STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC030GM1EC1TO-I-5E-A16-STD
Stock:10
Inv Date:06-16-2026
Price: Unit price: $368.75
Buy/RFQ:

SWISSBIT SFPC030GM1EC1TOI5EA16STD Industrial NVMe SSD Specifications:

  • Form Factor: M.2 (2280/2242/2230), 30/42/80 mm x 22 mm x 2.63 mm
  • Capacities: 15 GBytes, 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes
  • Interface: PCI Express Gen3 x2, x4; NVMe 1.3 supported
  • Sequential Read Speed: up to 1,773 MB/s
  • Sequential Write Speed: up to 827 MB/s
  • Random Read IOPS: up to 140,000
  • Random Write IOPS: up to 131,000
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Supply Voltage: 3.3V, 1.8V, 0.9V
  • MTBF: > 2,000,000 hours
  • Data Retention: 10 years at start of life (25°C), 1 year at end of life
  • Compliance: EU EMC (2014/30), RoHS, REACH, WEEE
  • Physical Dimensions: Length 30/42/80 mm, Width 22 mm, Max Thickness 2.63 mm
  • Operation Shock: 1500 g, Vibration: 50 g

Buy the Swissbit SFPC030GM1EC1TOI5EA16STD – Reliable NVMe PCIe SSD for Industrial Applications

Purchase Swissbit SFPC030GM1EC1TOI5EA16STD online today and enjoy a high-performance, industrial-grade NVMe SSD designed for reliability, fast data transfer, and long-lasting durability. With capacities up to 480 GB, it supports PCIe Gen3 x2 and x4 interfaces, providing speeds up to 1,773 MB/s sequential read and 827 MB/s write. Its rugged design operates from -40°C to 85°C, making it perfect for harsh environments. Trusted in embedded systems, servers, and industrial applications, this SSD guarantees data integrity and exceptional endurance.

Get Swissbit SFPC030GM1EC1TOI5EA16STD today—high-speed, industrial-grade NVMe SSD built for durability and performance in demanding environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC030GM1EC1TOI5EA16STD?

You can click on the BUY or RFQ button to purchase SFPC030GM1EC1TOI5EA16STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC030GM1EC1TOI5EA16STD?

You can download the SFPC030GM1EC1TOI5EA16STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC030GM1EC1TOI5EA16STD?

SWISSBIT
