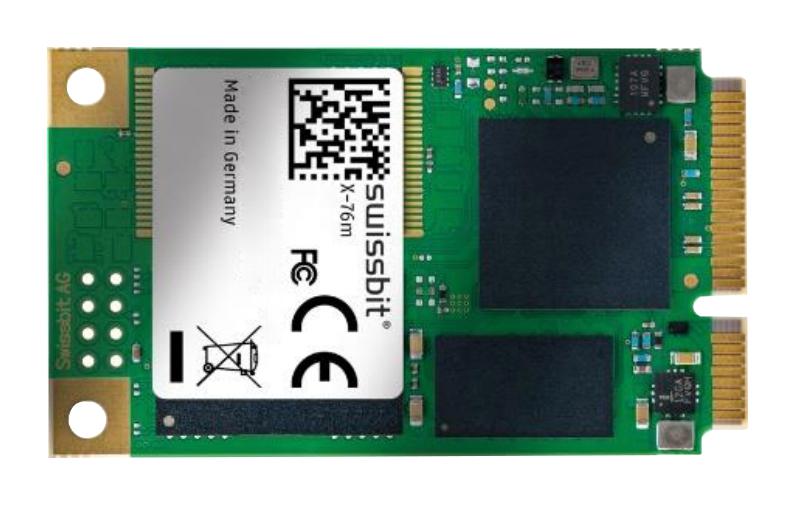

SWISSBIT SFSA020GU2AK1TOI6B22PSTD Industrial SATA SSD

The Swissbit X-76m SSD is a high-performance, industrial-grade solid state drive leveraging JEDEC MO-300A standards and SATA Gen3 interface. Featuring TLC 3D NAND flash in pSLC mode, it offers impressive sequential and random read/write speeds, robust endurance, and advanced data management including wear leveling and power fail protection. The device supports AES encryption, TCG Opal standards, and in-field firmware updates, making it ideal for embedded applications requiring reliable, high-speed storage within industrial temperature ranges. It conforms to strict regulatory standards for EMC, RoHS, REACH, and WEEE, ensuring compatibility and safety for diverse operating environments.

Swissbit SFSA020GU2AK1TOI6B22PSTD – Reliable Storage for Industrial Applications
View SFSA020GU2AK1TOI6B22PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA020GU2AK1TO-I-6B-22P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $209.73
Buy/RFQ:

SWISSBIT SFSA020GU2AK1TOI6B22PSTD Industrial SATA SSD Specifications:

  • Form Factor: JEDEC MO-300A, 50.8 mm x 29.85 mm x 3.8 mm
  • Capacity: 20 GBytes
  • Interface: SATA Gen3 (6 Gbit/s), backward compatible with Gen2 and Gen1
  • Connector: 52-pin edge type with 30 gold-plated pins
  • Sequential Read Speed: Up to 440 MB/s
  • Sequential Write Speed: Up to 180 MB/s
  • Random Read 4K: Up to 33,900 IOPS
  • Random Write 4K: Up to 44,450 IOPS
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -40°C to 85°C
  • Power Consumption: Max 590 mW during sequential write, Idle 415 mW
  • MTBF: > 2,000,000 hours
  • Endurance: 660 TBW, 30 DWPD over three years
  • Power Fail Protection: Yes, via hardware and firmware mechanisms
  • Data Security: Supports AES 256-bit encryption and TCG Opal 2.0 (on request)
  • Regulatory Compliance: EMC, RoHS, REACH, WEEE

Buy the Swissbit SFSA020GU2AK1TOI6B22PSTD – Reliable Storage for Industrial Applications

Order the Swissbit SFSA020GU2AK1TOI6B22PSTD now and experience high-speed, reliable storage designed for demanding industrial environments. This industrial SATA SSD offers impressive sequential and random performance, robust power fail protection, and advanced security options including AES encryption and TCG Opal standards. With a focus on durability, endurance, and regulatory compliance, it is ideal for embedded systems, automation, and mission-critical applications. Purchase online today to ensure your data storage needs are met with trusted Swissbit quality and support.

Get Swissbit SFSA020GU2AK1TOI6B22PSTD today—built for high-speed, industrial-grade storage and long-lasting durability.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA020GU2AK1TOI6B22PSTD?

You can click on the BUY or RFQ button to purchase SFSA020GU2AK1TOI6B22PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA020GU2AK1TOI6B22PSTD?

You can download the SFSA020GU2AK1TOI6B22PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA020GU2AK1TOI6B22PSTD?

SWISSBIT
