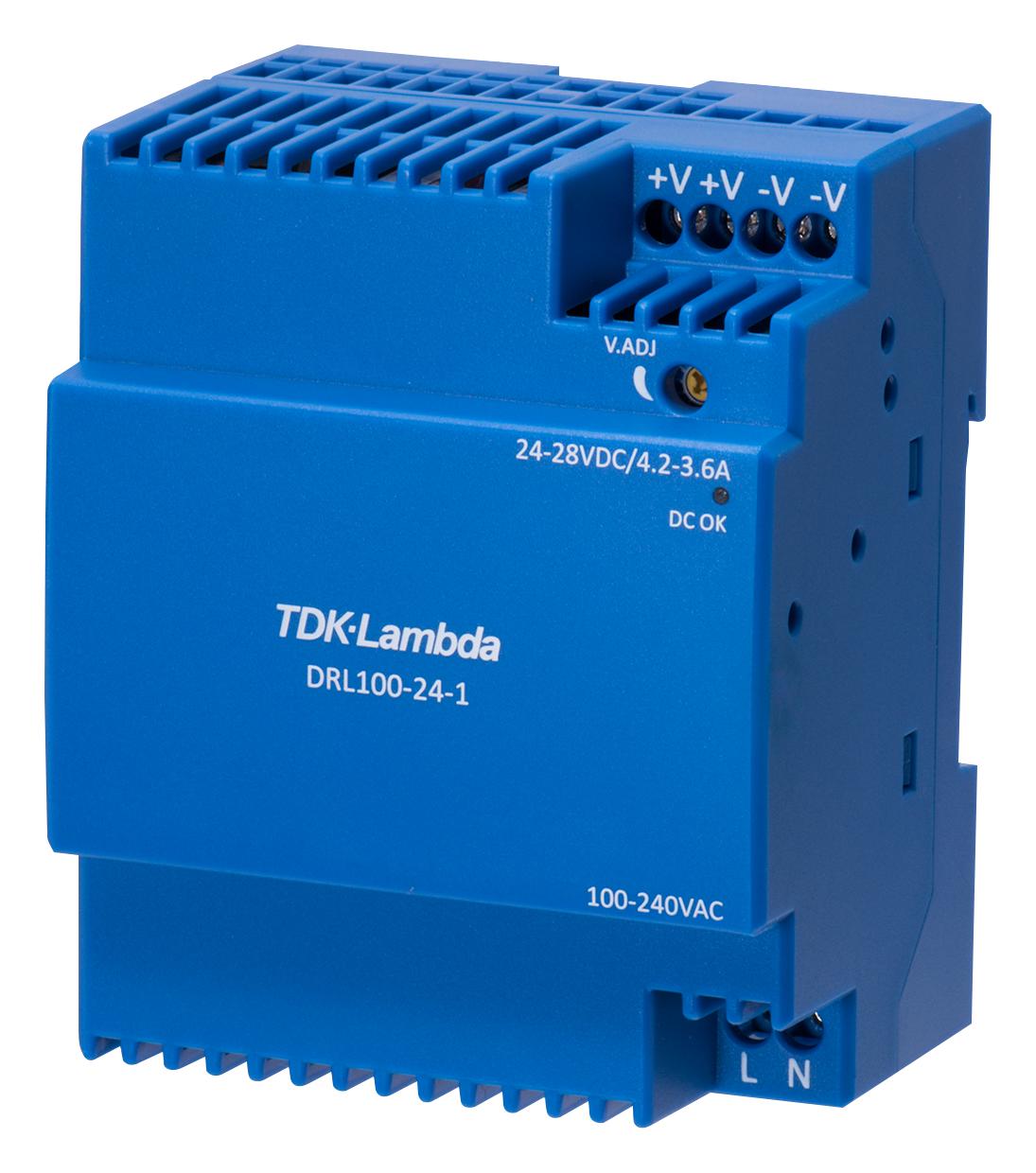

TDK-LAMBDA DRL100241 Industrial Power Supply
The DRL10-100 series offers compact, high-efficiency DIN rail mount power supplies designed for industrial, automation, and testing applications. With efficiencies reaching up to 90% at 230VAC, these models provide reliable power with low no-load consumption and long lifecycle, exceeding 8 years at 40°C with 75% load. They feature wide input voltage ranges of 85-264VAC, UL1310 Class 2 compliance, and energy-saving thermal performance. Suitable for various environments, they support series operation, have durable flame-retardant polycarbonate cases, and withstand voltage up to 3kVAC, making them ideal for industrial and control systems requiring dependable power modules.
TDK-LAMBDA DRL100241 Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC, withstands 300VAC for 5 seconds
- Input Frequency: 47 - 63Hz
- Inrush Current: 40-60A at 230VAC
- Power Factor: Meets IEC61000-3-2 Class A at 115/230VAC
- Input Current: 0.18/0.12A for 110/230VAC
- Hold Up Time: 15-20ms at 15VAC input
- Efficiency: Up to 90% depending on model
- No Load Power Draw: Less than 0.5W
- Operating Temperature Range: -20°C to +71°C (derates above 55°C)
- Storage Temperature: 40°C to +85°C
- Operating Humidity: 5-95% RH non-condensing
- Isolation Voltage: 3kVAC between input and output
- Size: Ranges from 18x91x55.6mm to 72x91x55.6mm depending on model
- Weight: 65g to 280g depending on model
- Certification: UL, CSA, CE, EN55022 EMI, EN61000-4 immunity
- Cooling: Convection cooling
- Wattage: 10W to 100W
Buy the TDK-Lambda DRL10-100 Reliable Power Supply for Industrial Applications
Discover the reliable performance of the TDK-Lambda DRL10-100 series, designed for industrial, automation, and testing systems. These high-efficiency DIN rail power supplies ensure stable operation with efficiencies reaching up to 90%, low no-load power consumption, and a robust flame-retardant case. Suitable for various voltages and environments, they are ideal for demanding control and automation applications. Purchase online now for dependable power solutions, quick shipping, and long-term reliability tailored to high-performance industrial setups.
Get TDK-Lambda DRL10-100 power supplies today—built for precision and long-lasting durability in industrial environments.
