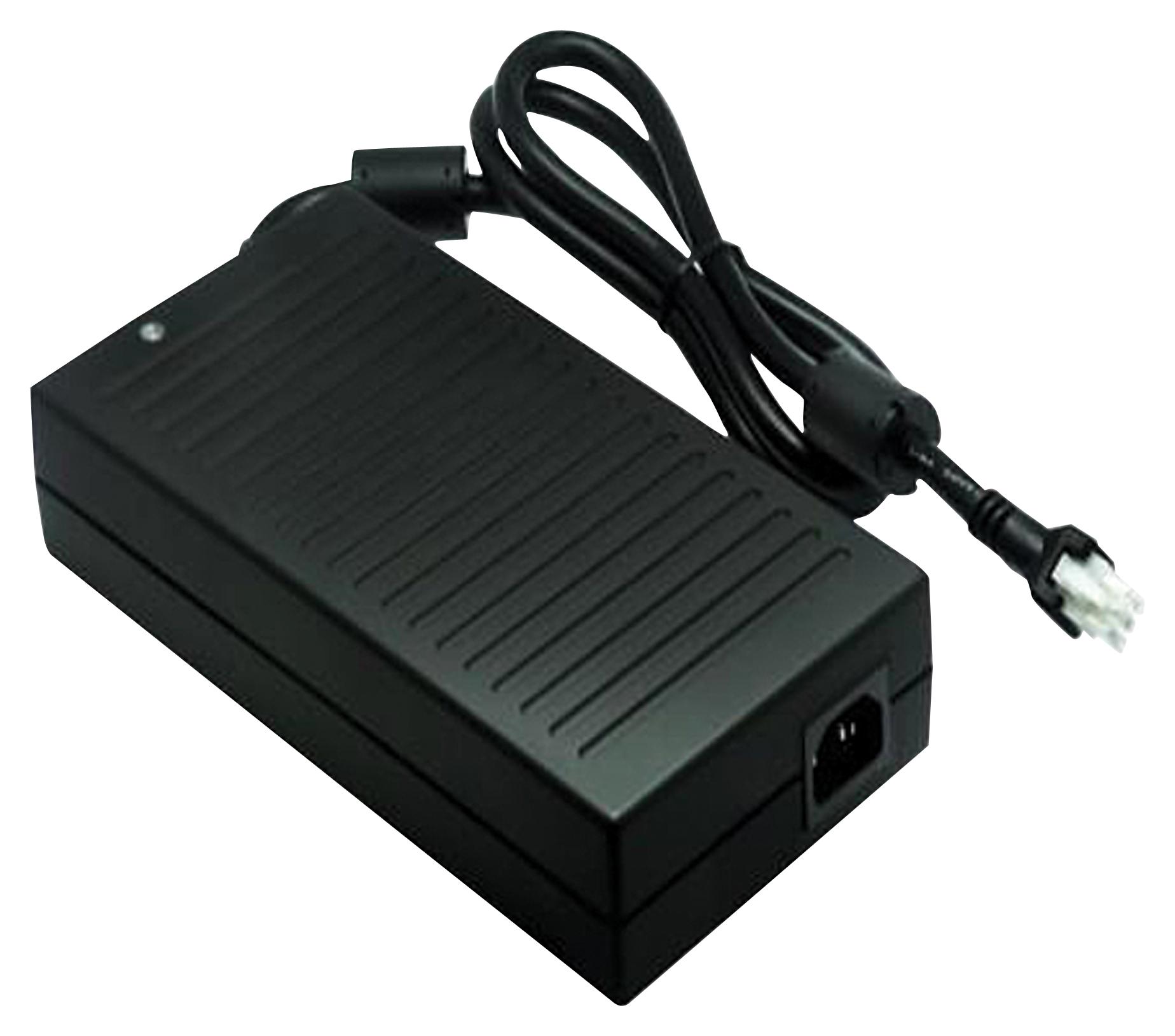

TDK-LAMBDA DTM250PW190D medical power supply
The DTM250-D Series offers 250W external power supplies suitable for medical and industrial applications, meeting crucial standards like IEC60601-1-2 Ed4 and DoE Level VI efficiency. They feature low off-load power consumption (<0.15W), high efficiency (>89%), and broad input voltage compatibility (90-264VAC). With a compact size (90 x 200 x 45mm), convection cooling, and multiple voltage options (12V to 54V), these supplies support medical, testing, and broadcasting equipment while ensuring safety with IEC, UL, CSA, and CE certifications. Suitable for B & BF rated devices, they operate reliably from -20°C to +60°C.
TDK-LAMBDA DTM250PW190D medical power supply Specifications:
- Input Voltage range: 90 - 264VAC, 47 - 63Hz
- Inrush Current: <80A at 230VAC, 25°C ambient
- Maximum Input Current: 2.5A @115VAC, 1.3A @230VAC
- Touch Current: <100UA @ 264VAC
- Power Factor: >0.9 at 230VAC full load, meets EN61000-3-2
- Hold Up Time: 10ms at 115VAC input
- Temperature Coefficient: <0.05%/°C
- Total Regulation: 45%
- Ripple & Noise (pk-pk): 240mV at 12V, 300mV at 19-54V
- Overload & Short Circuit Protection: 105-160%, hiccup mode
- Overvoltage Protection: cycle input power to reset
- Efficiency: >89% on average
- Operating Temperature: -20°C to +60°C, derate linearly
- Storage Temperature: -20°C to +85°C
- Humidity: 0-95% RH, non-condensing
- Cooling: Convection cooled
- Withstand Voltage: 4kVAC input to output, 1.5kVAC to ground
- Safety Certifications: IEC, UL, CSA, EN60601-1, EN60950-1
- Size: 3.543 x 7.874 x 1.77 inches (90 x 200 x 45mm)
- Cable Length: 800mm
- Connectors: IEC 320-C14 inlet, Molex Mini Fit 39-28-1063
- Weight: approximately 1300g
- Warranty: 3 years
- Suitable for medical B & BF rated equipment, testing, broadcasting applications
Buy the TDK-Lambda DTM250-D – Reliable Power Supply for Industrial Applications
Get the TDK-Lambda DTM250-D power supply series online today for reliable, high-efficiency power delivery suitable for medical, testing, and industrial equipment. With certifications like IEC, UL, and CSA, these units ensure safety and compliance. Featuring broad input voltage compatibility (90-264VAC), low off-load power consumption (<0.15W), and multiple output voltages from 12V to 54V, they support B and BF-rated medical devices. Compact, convection-cooled, and built for durability, order now for seamless project integration and assured performance.
Order your TDK-Lambda Series DTM250-D medical power supply today and ensure your devices operate safely, efficiently, and reliably with superior power performance.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM250PW190D?
You can click on the BUY or RFQ button to purchase DTM250PW190D from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM250PW190D?
You can download the DTM250PW190D datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM250PW190D?
TDK-LAMBDA
