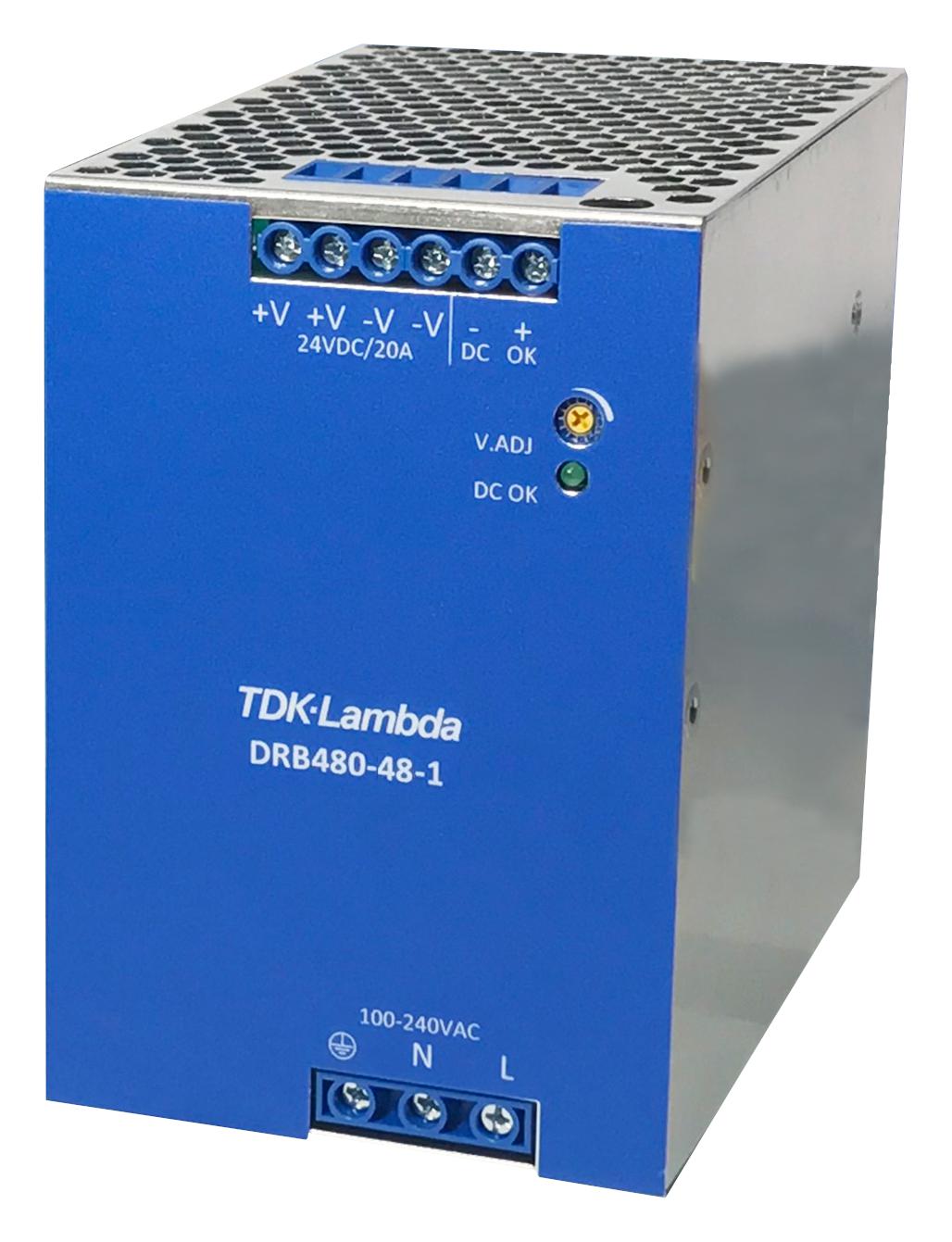

TDK-LAMBDA DRB480481 Industrial DIN Rail Power Supply
The DRB120-480 Series includes high-efficiency, narrow-width DIN rail mount power supplies delivering 120W to 480W of stable power output. Designed for industrial automation, these supplies feature excellent EMI performance, high reliability, and a long eCap-Life up to 7 years, supported by a 3-year warranty. They operate efficiently across a wide input voltage range of 85-264VAC, with various models offering adjustable output voltages from 24V to 48V, suitable for diverse industrial applications. Certifications include UL, IEC, CSA, CE, and compliance with EMI standards, making them ideal for factory automation, control systems, and manufacturing environments.
TDK-LAMBDA DRB480481 Industrial DIN Rail Power Supply Specifications:
- Input Voltage Range: 85 - 264VAC (withstands 300VAC for 5s), 47-63Hz
- Input Current: 55A (typical at 230VAC), <40A at 264VAC
- Inrush Current: 55A (typical), Start-up at -40°C
- Efficiency: Up to 93% at 230VAC
- Output Voltage Range: 24V to 48V with models offering adjustable outputs (24-28V, 48-52.8V)
- Output Power: 120W to 480W depending on model
- Load Regulation: <1.7%, Ripple & Noise: <0.1V
- Temperature Range: -25°C to +70°C (derating linearly from 55°C to 70°C), Storage -40°C to +85°C
- Isolation Voltage: 3kVAC input to output, 1.5kVAC input to ground, 500VAC output to ground
- Protection: Overcurrent, Overvoltage, Overtemperature
- Vibration: 2G (120/240W), 5G (480W)
- Shock: 20G (120/240W), 5G (480W)
- Certification: UL508, IEC/EN/UL/CSA60950-1, CE, EMI: EN55011, EN55032, CISPR11, CISPR22, Immunity: EN61000-4
- Dimensions: 35 x 124 x 125 mm (120W), 41 x 124 x 125 mm (240W), 84 x 124 x 125 mm (480W)
- Case Material: Metal
- Weight: 500g to 1000g depending on model
- Warranty: 3 years
Buy the Buy TDK-Lambda DRB120-480 Series Power Supplies Part Number DRB480481 Online
Purchase TDK-Lambda DRB480481 now to ensure reliable power delivery for your industrial automation needs. Designed with high efficiency, EMI compliance, and a long lifespan, this DIN rail power supply provides stable outputs from 24V to 48V with up to 480W power. Its robust construction, comprehensive protections, and certifications for safety and EMI make it ideal for factory automation, manufacturing processes, and control systems. Get it today to optimize your industrial setups with durable, efficient, and easy-to-install power solutions.
Get TDK-Lambda DRB480481 today—built for industrial control systems, reliable performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DRB480481?
You can click on the BUY or RFQ button to purchase DRB480481 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DRB480481?
You can download the DRB480481 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DRB480481?
TDK-LAMBDA
