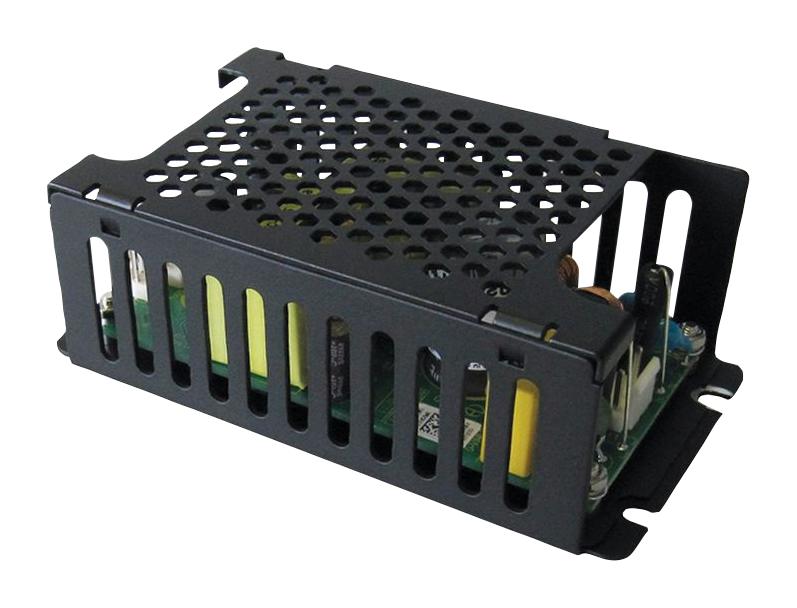

TDK-LAMBDA CUS100ME36A Power Supply
The CUS100ME Series 36A power supply offers reliable 100W convection-cooled operation suitable for medical and industrial environments. Designed with high efficiency up to 94%, it features low ripple & noise (<1%), compact dimensions, and excellent isolation for safety compliance. With an operating temperature range of -20°C to +85°C and a minimal leakage current (<250μA), this power supply ensures stable performance even at elevated temperatures. Certified to IEC/EN/UL standards including IEC 60601-1, it provides a robust solution for B & BF rated medical equipment, with optional configurations for various mounting styles.
TDK-LAMBDA CUS100ME36A Power Supply Specifications:
- Output Power: 100W
- Output Current: 36A
- Input Voltage Range: 85 - 264VAC (47 - 440Hz), derates linearly to 90% load from 90 to 85VAC
- Efficiency: Up to 94%
- Ripple & Noise: <1% (pk-pk)
- Line Regulation: 0.5% (85-264VAC)
- Load Regulation: 1%
- Leakage Current: <250μA at 230VAC
- Operating Temperature: -20°C to +85°C
- Storage Temperature: 40°C to +85°C
- Isolation: Output to ground 1.5kVAC, Output to ground 100MΩ at 25°C & 70%RH
- Certifications: IEC/EN/UL 60601-1, 60950-1, 61010-1, EN55011/55032-B EMI standards, EN60601-1-2 immunity
- Dimensions: 116.00mm x 95.25mm x 31.5mm
- Cooling: Convection or conduction (coldplate)
- Weight: Approximately 220g
Buy the TDK Series CUS100ME 36A Power Supply: 100W Medical & Industrial Certified
Secure your TDK Series CUS100ME 36A power supply now for dependable performance in medical and industrial environments. Designed with high efficiency up to 94%, it features low ripple, excellent safety certifications, and robust operation across a wide temperature range. Compact and lightweight, this switch mode power supply offers reliable power in the most demanding applications. Purchase online today to ensure your projects benefit from quality, safety, and performance backed by trusted certification standards and a comprehensive warranty.
Order your TDK Series CUS100ME 36A power supply today and ensure reliable, medical-grade power delivery for your critical applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS100ME36A?
You can click on the BUY or RFQ button to purchase CUS100ME36A from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS100ME36A?
You can download the CUS100ME36A datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS100ME36A?
TDK-LAMBDA
