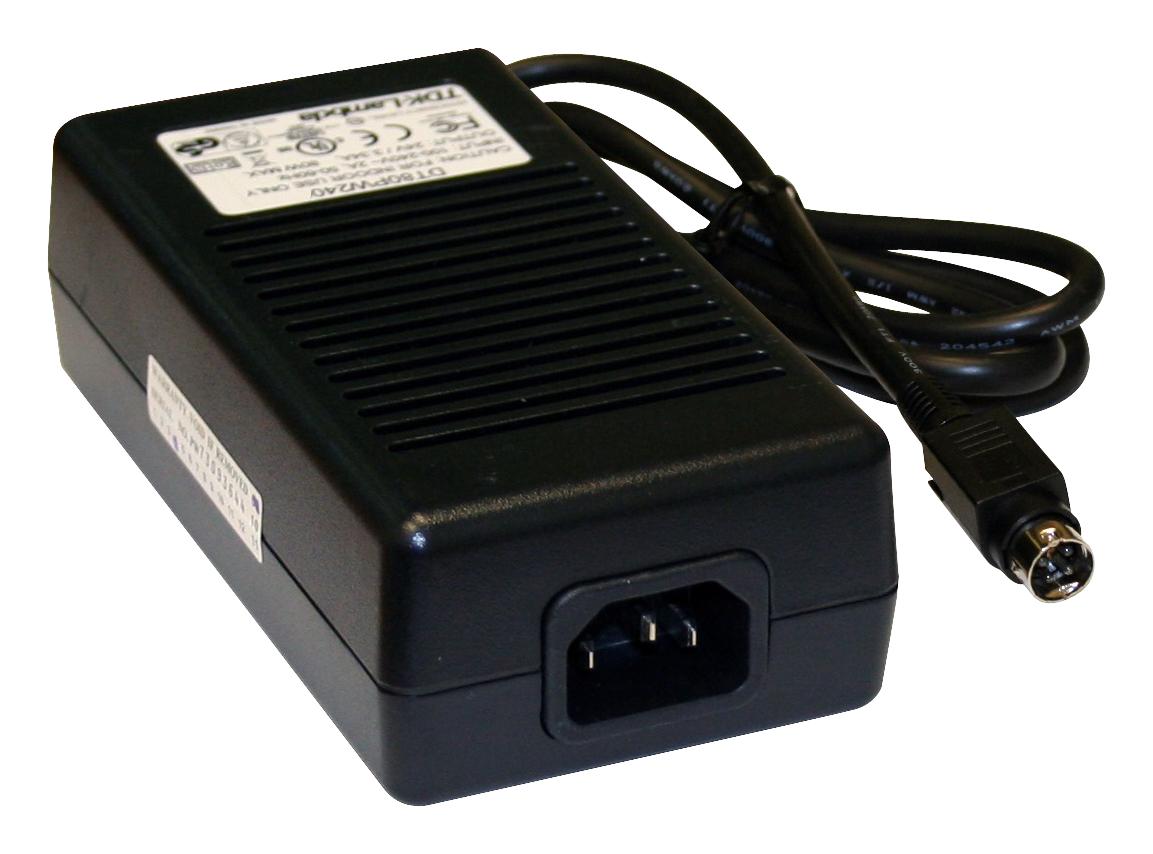

TDK-LAMBDA DTM65PW480D Medical Power Supply
This medical power supply offers reliable 40-65W performance in healthcare applications, ensuring safety and efficiency. It features DOE Level VI and EU Tier 2 efficiency compliance, low no-load power draw under 0.15W, and medical safety certifications, including IEC60601-1. With a wide input voltage range of 90-264VAC and multiple output options from 5V to 48V, it provides stable power with high efficiency exceeding 89%. The compact, durable design features convection cooling, a compact size of 2.72 x 5.2 x 1.57 inches, and a three-year warranty, suitable for medical and industrial environments.
TDK-LAMBDA DTM65PW480D Medical Power Supply Specifications:
- Input Voltage Range: 90 - 264VAC (47 - 63Hz)
- Inrush Current: <50A at 115VAC, <90A at 230VAC, 25°C
- Output Power: 40-65W across models from 5V to 48V
- Output Voltage Range: 5V to 48V with precise regulation
- Efficiency: >89% (average), exceeding DOE Level VI & EU Tier 2
- Operating Temperature: -20 to +60°C derate from 51°C to 60°C
- Storage Temperature: -20 to +85°C
- Humidity: 10-90% RH
- Dimensions: 2.72 x 5.2 x 1.57 inches (69 x 132 x 40mm)
- Weight: 390g
- Cooling: Convection
- Protection: Overload, short circuit, overvoltage, overtemperature
- Safety Certifications: UL, EN60601-1, IEC60601-1, CSA-C22.2 No.60601-1
- Input to Ground: 1.5kVAC, Input to Output: 4kVAC
- Vibration (non-operating): 10 - 55Hz, 0.1961 m/s²
- Shock: 20G
- Mounting: Rubber feet included
Buy the Buy TDK-Lambda DTM65-Power Supply Part Number DTM65PW480D Online
Purchase the TDK-Lambda DTM65PW480D medical power supply online today and enjoy dependable power for healthcare applications. Featuring high efficiency over 89%, wide input voltage range, and comprehensive medical safety certifications, this compact, durable power supply is ideal for hospitals and medical devices. Its robust design ensures reliable operation in critical environments, backed by a three-year warranty. Simplify your procurement process by ordering online and receive fast delivery, technical support, and peace of mind for continuous healthcare device operation.
Order your TDK-Lambda Series DTM65PW480D power supply today and ensure reliable, medical-grade performance for your healthcare equipment.
