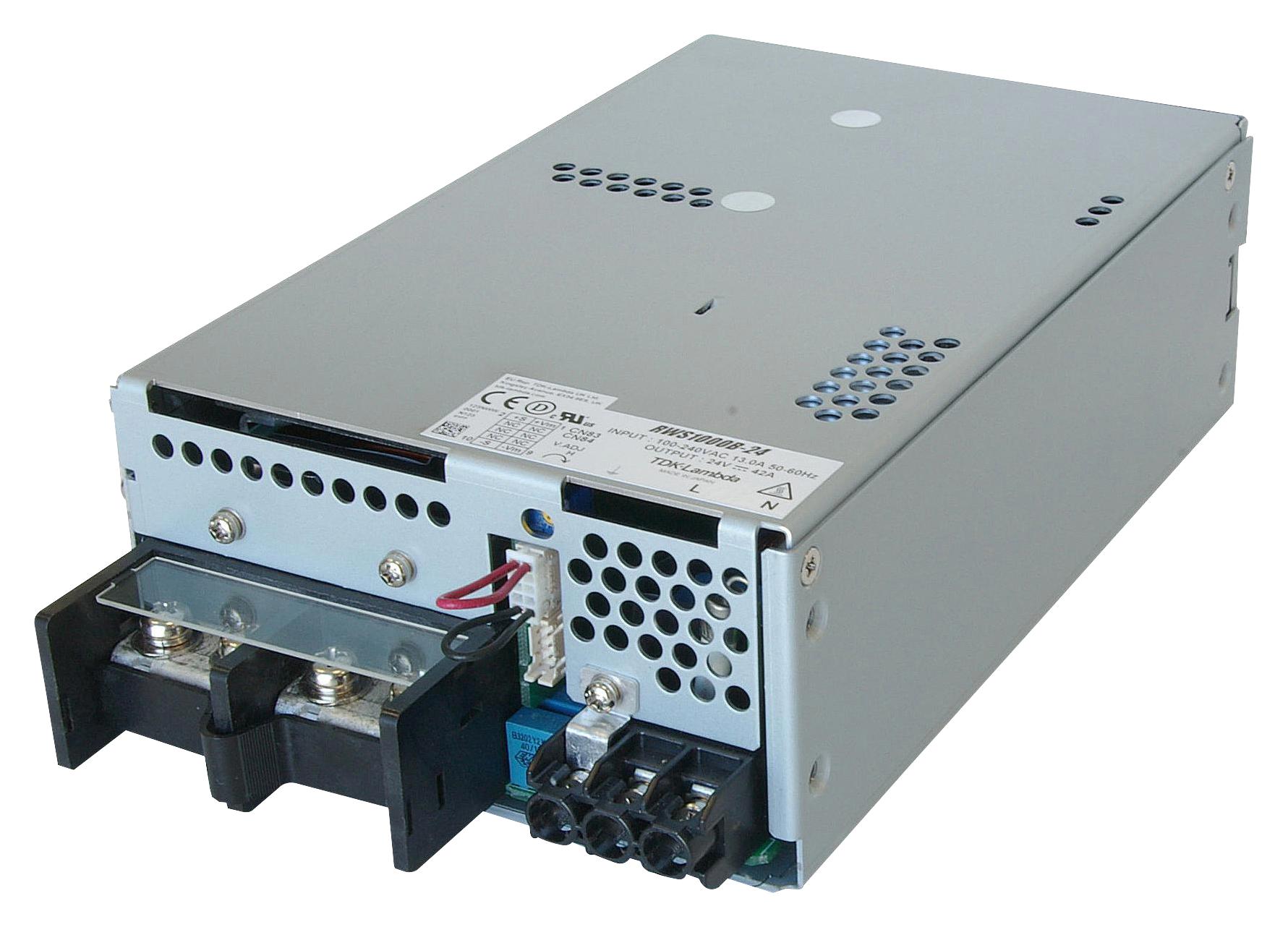

TDK-LAMBDA RWS1000B12S Industrial Power Supply
The RWS1000/1500-B series are high-wattage AC-DC power supplies offering 1000W and 1500W outputs with wide input voltage ranges from 85 to 265Vac. They feature low ripple and noise, high efficiency, and conformity to international safety and EMI standards. Designed for industrial and broadcast applications, these supplies support parallel and series operation, include remote on/off control, and are built with robust safety and EMI certification like IEC/UL/CSA. They are space-efficient, reliable, and backed by a 7-year warranty, suitable for demanding industrial environments.
TDK-LAMBDA RWS1000B12S Industrial Power Supply Specifications:
- Input Voltage Range: 85 - 265Vac, 120 - 340Vdc
- Input Frequency: 47 - 63Hz
- Rated Power: 1000W and 1500W
- Output Voltage Range: 12V to 48V, non-minimum load requirements
- Ripple & Noise: 150-300mV, depending on model
- Efficiency: up to 95%, see model selector table
- Protection: Overcurrent (>105%), Overvoltage, Overtemperature (latching)
- Remote Sense: Yes
- Cooling: Forced air, optional reverse fan
- Size: RWS1000B: 127 x 63 x 198 mm, RWS1500B: 127 x 63 x 261 mm
- Weight: RWS1000B: 2000g, RWS1500B: 3000g
- Isolation Voltage: 2000V between input and ground, 4000V input to output
- Certifications: IEC/UL/CSA/EN62368-1, CE, UKCA
- Environmental: Operating -20°C to +60°C, derate to 60% load at 60°C; Storage -30°C to +75°C
- EMC & Immunity: Compliant with IEC55011, EN55032-B, FCC Class B
- MTBF: 1,222,361 hours
Buy the Buy TDK-Lambda RWS1000/1500-B Power Supply Part Number RWS1000B12S Online
Experience unmatched dependability with the TDK-Lambda RWS1000/1500-B power supplies. Offering 1000W and 1500W outputs, they feature broad input voltage ranges from 85 to 265Vac, high efficiency up to 95%, and compliance with international safety and EMI standards. The rugged design supports parallel and series operation, remote on/off control, and is built for demanding industrial environments. Backed by a 7-year warranty, these compact, space-saving supplies ensure robust performance for various industrial, broadcast, and automation applications. Purchase online today for seamless integration and long-term reliability.
Buy TDK-Lambda RWS1000/1500-B series power supplies now and enjoy reliable, efficient performance especially designed for industrial and broadcast environments.
Frequently Asked Questions
Where can I buy TDK-LAMBDA RWS1000B12S?
You can click on the BUY or RFQ button to purchase RWS1000B12S from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part RWS1000B12S?
You can download the RWS1000B12S datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of RWS1000B12S?
TDK-LAMBDA
