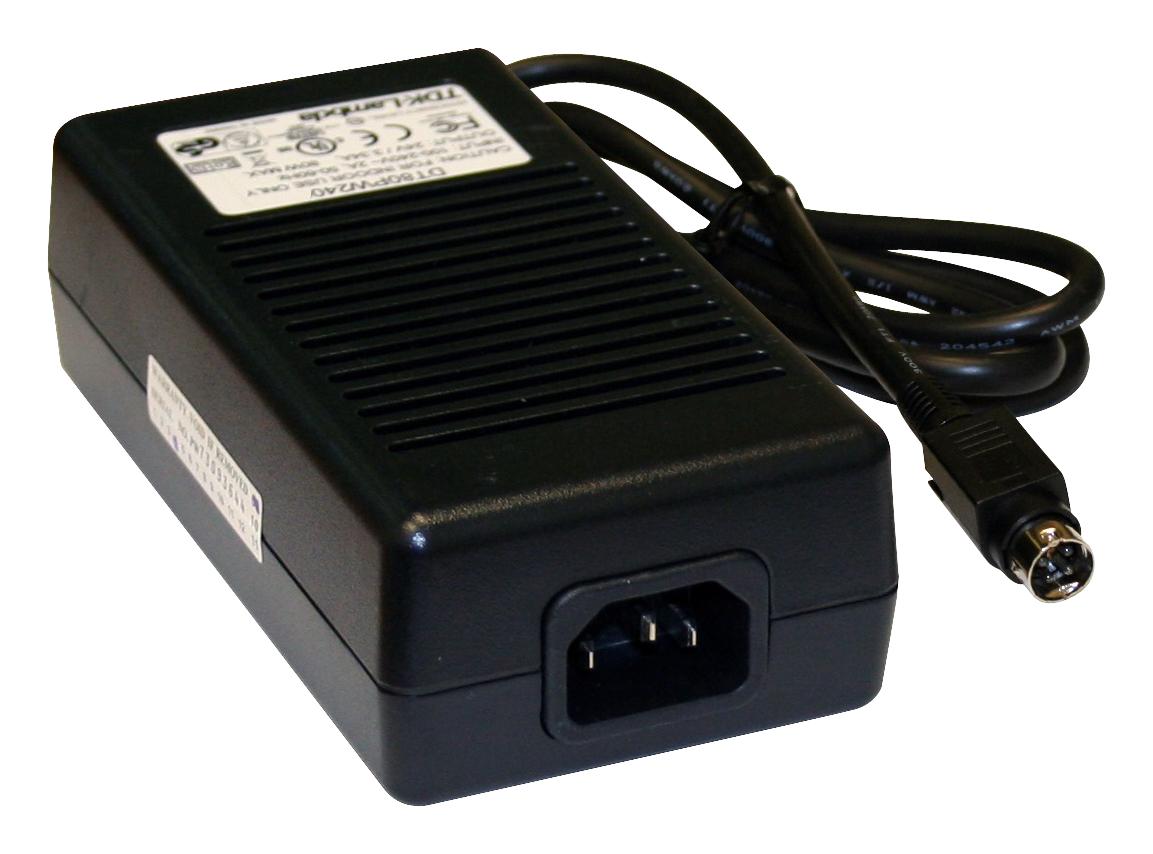

TDK-LAMBDA DTM65PW360D Medical Power Supply
This medical-grade power supply offers 85-90 watts with high efficiency, low off-load power consumption, and comprehensive safety certifications, making it ideal for healthcare equipment. It features an adjustable output voltage range from 5V to 48V, with protections against overload, overvoltage, and temperature, ensuring safety and durability. The compact design and reliable performance in wide ambient temperature ranges of -20°C to +85°C support various medical devices, delivering consistent power with minimal noise and ripple, optimized for demanding medical environments.
TDK-LAMBDA DTM65PW360D Medical Power Supply Specifications:
- Input Voltage: 90 - 264VAC (47 - 63Hz)
- Output Power: 40-65W
- Efficiency: >89%, average efficiency (5V model: 87.3%)
- Output Voltages: 5V, 12V, 15V, 19V, 24V, 28V, 36V, 48V
- Output Current: 8A, 5A, 4A, 3.42A, 2.71A, 2.32A, 1.81A, 1.35A respectively
- Dimensions: 69 x 132 x 40 mm
- Weight: 390g
- Operating Temperature: -20°C to +60°C (derating linearly above 50°C), -20°C to +85°C storage
- Cooling: Convection
- Safety Certifications: UL, EN, IEC60601-1, CSA-C22.2 No.60601, IEC60601-1-2 Ed4:2014
- Environmental: 10-90% RH, IP20 protected
- Input to Ground: 1.5kVAC, Input to Output: 4kVAC, Output to Ground: 1.5kVAC
- Vibration: 10 - 55Hz, 23.52 m/s²
- Shock: 20G
- Protection: Overload (cycle mode), Overvoltage, Overtemperature
- Efficiency: >89%
Buy the Buy TDK-Lambda DTM65 Power Supply Part Number DTM65PW360D Online
Purchase the TDK-Lambda DTM65PW360D power supply online today. Designed specifically for medical applications, it offers 85-90W with high efficiency, low power draw when off, and comprehensive safety certifications. Its adjustable output voltage from 5V to 48V makes it versatile for a wide range of medical devices. Compact and reliable, this power supply ensures consistent performance, safety, and durability in demanding healthcare environments. Enjoy fast delivery and trusted quality with every order.
Get TDK-Lambda DTM65PW360D today—engineered for medical precision, durability, and reliable power delivery in healthcare environments.
Frequently Asked Questions
Where can I buy TDK-LAMBDA DTM65PW360D?
You can click on the BUY or RFQ button to purchase DTM65PW360D from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part DTM65PW360D?
You can download the DTM65PW360D datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of DTM65PW360D?
TDK-LAMBDA
