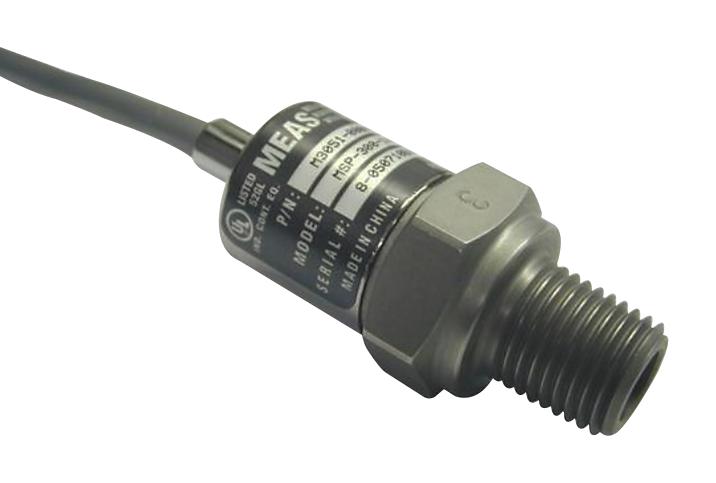

TE CONNECTIVITY M3021000005100PG Pressure Sensor
The MSP300 Pressure Transducer is a durable, stainless steel sensor suitable for liquid and gas pressure measurement, including challenging media like contaminated water, steam, and mildly corrosive fluids. It features a robust one-piece construction from 17-4PH or 316L stainless steel, with a leak-proof 1/4 NPT sealed system. Employing proprietary Microfused technology, it offers excellent stability, media compatibility, and optional digital or analog outputs, making it ideal for industrial applications such as hydraulic, pneumatic systems, medical gases, and leak detection. Compact and customizable, it ensures high accuracy and long-term reliability for OEMs and industrial users.
TE CONNECTIVITY M3021000005100PG Pressure Sensor Specifications:
- Construction: One-piece stainless steel (17-4PH or 316L)
- Pressure ranges: 0 to 100 psi, 0 to 200 psi, 0 to 300 psi, 0 to 500 psi, 0 to 1k psi, 0 to 3k psi, 0 to 5k psi, 0 to 10k psi, 0 to 15k psi
- Output options: Analog 0-50mV, 0-100mV, 0.5-4.5V, 1-5V, 4-20mA; Digital via SPI or I2C
- Power supply: 5V for analog, 3.3V for digital
- Accuracy: ±1% Span
- Response time: 1 ms
- Temperature: -40°C to +85°C operating, -40°C to +85°C storage
- Dimensions: Compact size with standard 1/4 NPT port, wiring includes PVC cables with 22 AWG
- Mounting: Standard NPT or BSPP threads
- Certification: UL (analog only), robust for industrial use
- Leak-proof, all-metal sealed system without O-rings or organics exposed to media
- Material: Corrosion-resistant stainless steel, hermetically welded for durability
Buy the TE Connectivity MSP300 – Reliable Pressure Sensor for Industrial Applications
Order the TE Connectivity MSP300 Pressure Transducer online today to ensure accurate, durable pressure measurement for industrial, hydraulic, pneumatic, and medical applications. Featuring stainless steel construction and customizable analog or digital outputs, it provides high stability, precision, and long-term reliability. Perfect for harsh environments like contaminated water, steam, and mildly corrosive fluids, this compact sensor is ideal for OEMs and industrial users seeking a robust, tested solution. Buy now to enhance your systems with proven performance and quality.
Get TE Connectivity MSP300 today—built for precision, durability, and reliable performance in demanding industrial environments.
