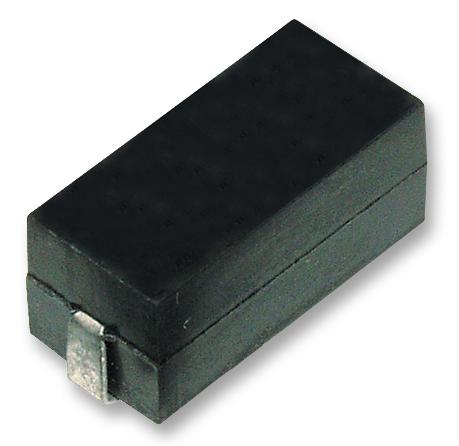

TE CONNECTIVITY SMV1W100KJT High Voltage SMD Resistor
The Metal Glaze high voltage SMD resistor series offers flameproof, molded packages resistant to sulfuration, heat, and humidity. Featuring UL94VO compliance and stable metal-glaze elements, these resistors withstand high surge and pulse overload, making them suitable for demanding power applications. They exhibit excellent resistance tolerance of ±5%, temperature coefficient of +200ppm/°C, and are capable of AC withstand voltage up to 1000V for 1 minute. Designed for reliability, these resistors are ideal for industrial environments requiring high stability and environmental resilience.
TE CONNECTIVITY SMV1W100KJT High Voltage SMD Resistor Specifications:
- Resistance Range: 100KΩ to 10MΩ
- Power Ratings: 1W, 2W, 3W
- Rated Voltage: up to 5000V
- AC Withstand Voltage: 1000V for 1 minute
- Resistance Tolerance: ±5%, ±1%
- Temperature Coefficient: +200ppm/°C
- Dielectric Withstand Voltage: 1000V
- Pulse Surge Capability: IEC61000-4-5 compliant
- Operating Temp Range: -65°C to +275°C
- Moisture and Load Life: 1000 hours at 40°C and 70°C respectively
- Mechanical stability, high surge and pulse overload resistance
Buy the TE Connectivity SMV1W100KJ – Reliable High Voltage SMD Resistor for Industrial Applications
Order TE Connectivity high voltage SMD resistors online today and ensure your designs meet the toughest industrial standards. These robust resistors offer exceptional surge and pulse overload resistance, UL94VO flameproof packaging, and reliable environmental stability for high-power applications. Perfect for power supplies, industrial control, and automation, their precise resistance tolerance and high dielectric withstand voltage help maintain consistent performance. Buy now and benefit from fast delivery, trusted quality, and technical support, securing your project's success and long-term durability.
Get TE Connectivity SMV1W100KJ today—built for high voltage stability and long-lasting durability in power management systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV1W100KJT?
You can click on the BUY or RFQ button to purchase SMV1W100KJT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV1W100KJT?
You can download the SMV1W100KJT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV1W100KJT?
TE CONNECTIVITY
