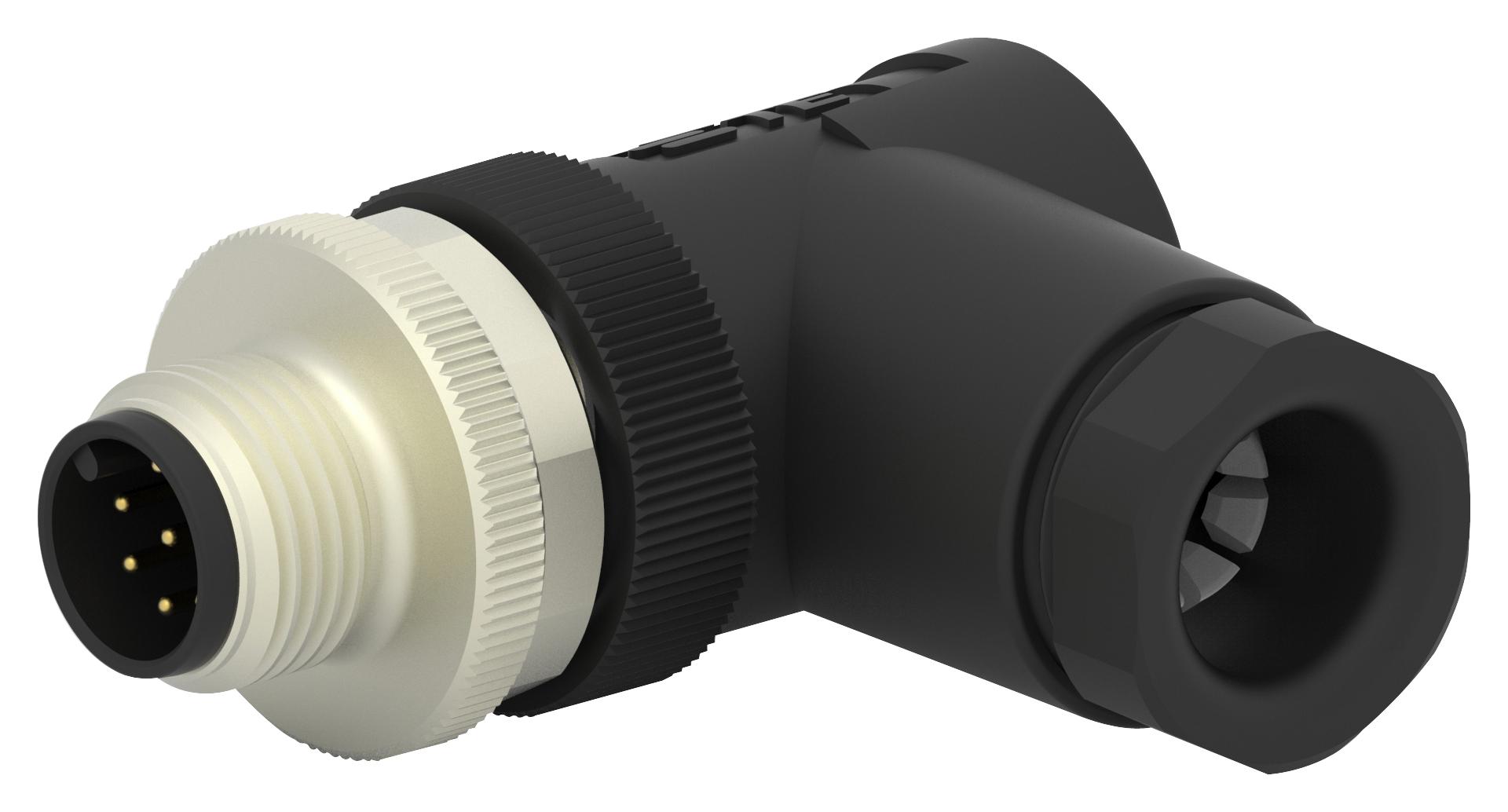

TE CONNECTIVITY T4113002081000 industrial circular connector
The M12 connector is a standard circular, wire-to-wire connector featuring 8 positions and a sealable design. Made with PBT material, it supports signal applications with a maximum current of 2A and offers IP67 environmental protection for dust and water ingress. It is field-installable, suitable for industrial automation, and compliant with EU RoHS and REACH directives. Designed for durability with a temperature range from -40°C to 85°C, it ensures reliable electrical connections for industrial and machinery systems.
TE CONNECTIVITY T4113002081000 industrial circular connector Specifications:
- Connector System: Wire-to-Wire
- Number of Positions: 8
- Sealable: Yes
- Connector & Contact Termination: Wire & Cable
- Contact Current Rating (Max): 2A
- Operating Voltage: 30 VAC
- Shell Material: PBT
- Ingress Protection: IP67
- Material: PBT, Silicone Elastomer Sealed
- Temperature Range: -40°C to 85°C
- Contact Type: Pin
- Mechanical Attachment: Threaded Coupling
- Mating Retention: With
- Mating Alignment: Keyed
- Shell Size: 20
- Wire Size Range: 0.05 – 0.14 mm²
- Durability Rating: 100 Cycles
- Industry Standards: UL Flammability Rating HB, IEC IP67
- Environmental Protection: IP67, Silicone Sealing
- Compliance: EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2, EU REACH
Buy the TE Series M12 Signal Connector: T4113002081
Order the TE Series M12 circular connector T4113002081 online today and ensure your industrial wiring projects benefit from a durable, IP67-rated, sealed connection with 8 positions, supporting 2A current. This connector's robust PBT construction guarantees excellent performance across a wide temperature range from -40°C to 85°C, making it ideal for demanding industrial environments. Easily install and maintain with its field-ready design, compliance with environmental standards, and reliable mechanical and electrical features—perfect for automation and machinery applications.
Buy TE Series M12 Signal Connector T4113002081 now and experience unmatched reliability and industrial performance for your wiring needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4113002081000?
You can click on the BUY or RFQ button to purchase T4113002081000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4113002081000?
You can download the T4113002081000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4113002081000?
TE CONNECTIVITY
