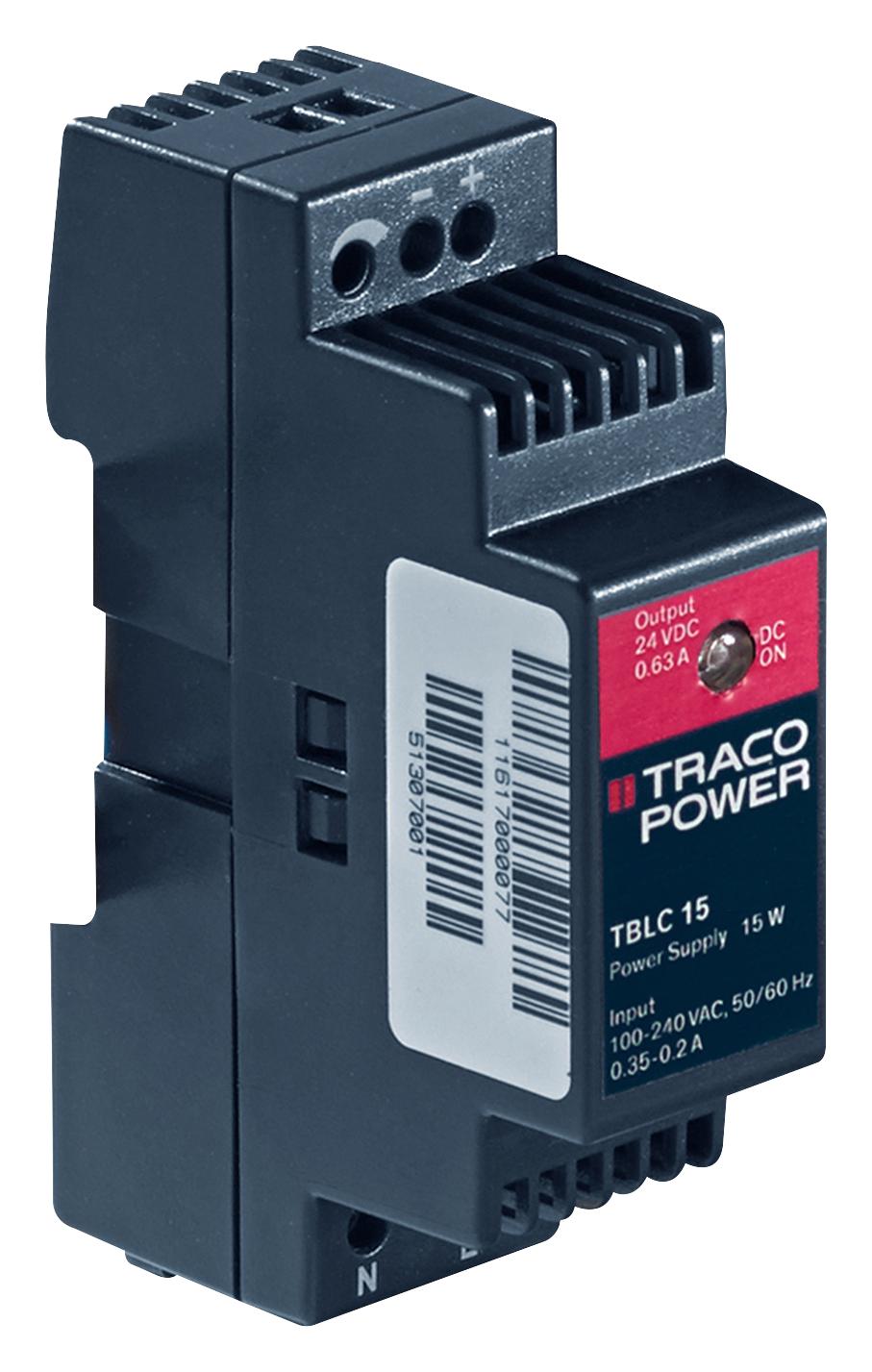

TRACO POWER TBLC15124 Industrial Power Supply
The TBLC Series power supplies provide industrial-grade DC output options with high efficiency, low ripple, and compact design suitable for industrial and residential applications. With an input range of 85 to 264 VAC, adjustable outputs, and protection features such as short circuit and overload protection, these modules ensure reliable performance. Mountable via DIN-rail or wall brackets, they meet safety standards including UL 1310 and UL 508, and operate within -25°C to +70°C. Designed for distributed power and compliant with ECO Standards, they are ideal for household and industrial uses.
TRACO POWER TBLC15124 Industrial Power Supply Specifications:
- Input voltage range: 85 - 264 VAC, 47-63 Hz
- Output power: 6W to 90W
- Output voltages: 5V, 12V, 24V (adjustable)
- Operating temperature: -25°C to +70°C
- Efficiency: up to 89%
- Mounting: DIN-rail, wall bracket included
- Protection: short circuit, overload
- Isolation: 3000 VAC
- Dimensions vary by model, e.g., 54.5 mm width for model TBLC50
- Certification: UL 1310, UL 508, IEC/EN 60950-1
- Enclosure: V2 rated plastic, IP20
- Wire connection: screw terminal for 0.5-2.5 mm² wire
- MTBF: over 1.9 million hours
Buy the Traco Power Series TBLC Power Supplies: TBLC15124
Invest in the Traco Power TBLC15124 power supply today and experience reliable, high efficiency power conversion designed for industrial and household applications. With a compact, low-profile case, this power module offers adjustable voltage output, short circuit protection, and compliance with safety standards including UL 1310 and UL 508. Its wide input voltage range of 85 to 264 VAC and operating temperature from -25°C to +70°C make it versatile and durable. Perfect for distributed power, it ensures consistent performance in demanding settings, and is easy to mount via DIN-rail or wall bracket, making it an ideal choice for professionals and installers seeking robust power solutions.
Get Traco Power TBLC15124 today—built for precision and long-lasting durability in demanding industrial and residential environments.
Frequently Asked Questions
Where can I buy TRACO POWER TBLC15124?
You can click on the BUY or RFQ button to purchase TBLC15124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TBLC15124?
You can download the TBLC15124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TBLC15124?
TRACO POWER
