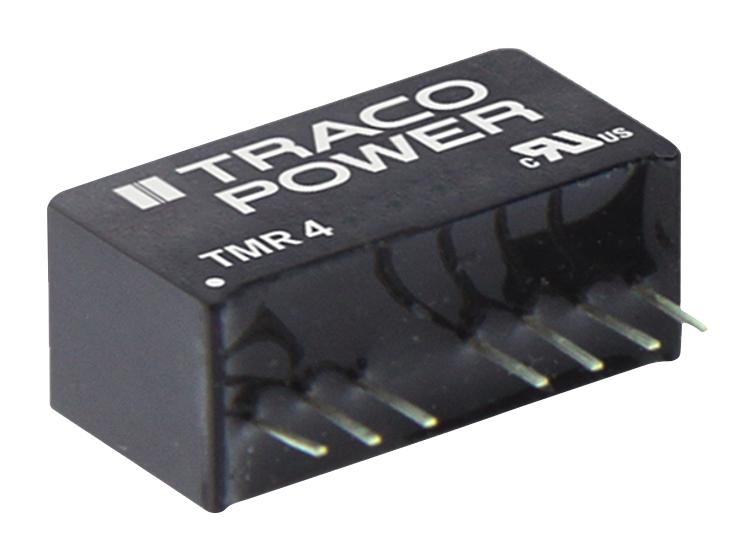

TRACO POWER TMR41212 DC/DC Converter
The TMR 4 series is a compact, 4 Watt regulated DC/DC converter in SIP-8 package, offering a wide 2:1 input voltage range from 5 VDC to 48 VDC, with efficiencies up to 87%. It features an isolation voltage of 1600 VDC, protection against short circuits and over load, and a remote On/Off control. Operating from -40°C to +70°C without derating, it ensures reliable performance in demanding environments. Certified for IEC/EN/UL 62368-1 standards, the series provides a space-saving, high-quality power solution ideal for industrial applications requiring isolated, regulated power supplies.
TRACO POWER TMR41212 DC/DC Converter Specifications:
- Input Voltage Range: 5 VDC to 48 VDC
- Output Power: 4 Watt
- Isolation Voltage: 1600 VDC
- Efficiency: up to 87%
- Operating Temperature: -40°C to +70°C (without derating)
- Input Current: 30 mA at 5 V, 15 mA at 12 V, 10 mA at 24 V
- Voltage Regulation: 0.5% max.
- Ripple and Noise: 80 mVp-p max at 20 MHz bandwidth
- Protection: Short-circuit, overload, foldback mode
- Remote On/Off: Yes
- Certifications: IEC 62368-1, UL 62368-1, EN 62368-1
- Start-up Time: 10 ms typical
- Isolation Resistance: 17,000 MΩ at 500 VDC
- Housing Material: Non-conductive UL 94 V-0 plastic
- Dimensions: 21.8 mm x 11.8 mm x 7.8 mm
- Weight: 48 g
Buy the TracoPower TMR41212 – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower TMR 4 series 4 Watt DC/DC converter today online to benefit from a compact, highly efficient, and certified power supply solution. Designed for industrial applications, it features a wide input voltage range from 5 to 48 VDC, offers up to 87% efficiency, and provides 1600 VDC isolation, protecting your equipment. With a remote On/Off function, it ensures easy integration into various systems. Trust this reliable, rugged converter for demanding environments, and enjoy quick, convenient online ordering for your project needs.
Buy TracoPower TMR 4 series 4 Watt DC/DC converter now and experience high efficiency, wide input range, and reliable isolated power solutions.
