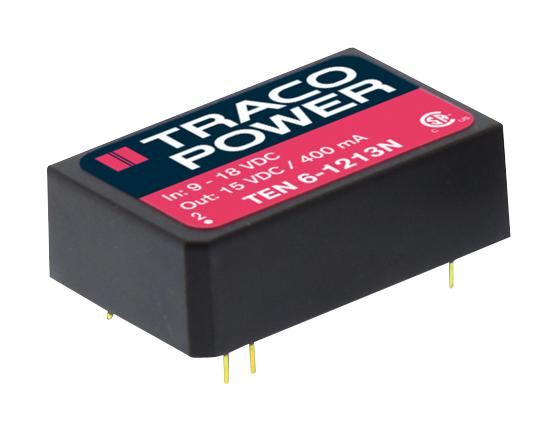

TRACO POWER TEN62415N DC/DC Converter
The TEN-6N Series is a compact 6-watt DC/DC converter line offering high efficiency, wide input voltage ranges, and excellent regulation and noise filtering. Designed with a DIP-24 package, these converters require no minimum load and feature overload protection, making them ideal for cost-sensitive applications. Operating from -40°C to +85°C, they meet strict safety and electromagnetic standards, ensuring reliable performance in industrial, automation, and embedded systems. Their versatility combined with robust protections simplifies integration and enhances device durability.
TRACO POWER TEN62415N DC/DC Converter Specifications:
- Input Voltage Range: 9.0 VDC to 75 VDC depending on model
- Output Power: 6 Watt
- Efficiency: up to 84%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC (input/output)
- Dimensions: DIP-24 package, 22.2 mm x 15.0 mm x 10.2 mm
- Ripple & Noise: 80 mVp-p
- Short Circuit Protection: automatic recovery
- Maximum Output Current: 1200 mA (depending on model)
- Enclosure: non-conductive UL 94V-0-rated plastic
- Surge Voltage: up to 100 V max for 1 sec
- Switching Frequency: 330 kHz
- Compliance: UL/cUL 60950-1, IEC/EN 60950-1, RoHS, Reach
- Weight: 13 grams
Buy the Traco Power Series TEN-6N DC/DC Converter: TEN62415N
Order the Traco Power TEN62415N online today to enjoy a reliable, efficient, and versatile 6-watt DC/DC converter. Engineered for industrial and automation applications, it features a DIP-24 package, high efficiency up to 84%, wide input voltage range, and comprehensive protections. This converter minimizes design complexity, offers automatic recovery from short circuits, and performs reliably across a temperature range from -40°C to +85°C. Perfect for engineers seeking a compact, robust power solution with proven safety standards. Purchase now for seamless integration and long-term durability.
Get Traco Power TEN62415N today—built for precision, durability, and reliable power conversion in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEN62415N?
You can click on the BUY or RFQ button to purchase TEN62415N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN62415N?
You can download the TEN62415N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN62415N?
TRACO POWER
